Data Communication Technology & Applications
Seamless Data Communication
Real Time Data to Customer Network
RF Communication Hub
Network Connectivity via Ethernet interface (Easy Integration)FTP Standard Network Connection, IP Address of FTP server is required
Automatic data archive through FTP to a designated file
Email Notifications of Any Recorded Events

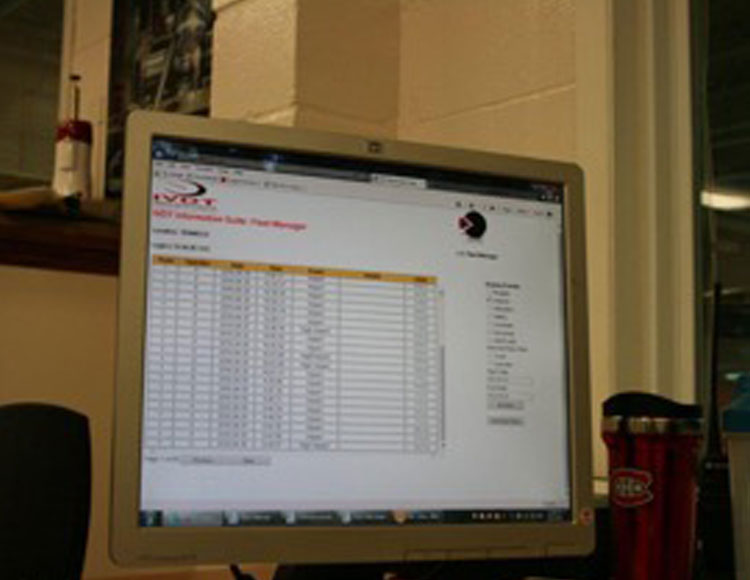

LAN Web Page, Assignment of Designated IP Address on Network
Mobile Event Recording
Long Range RF Communication
No Monthly Support Fees
Customizable Application Software
Intuitive Design for Ease of Use
Data on Demand
BS400 BASE STATION |
---|

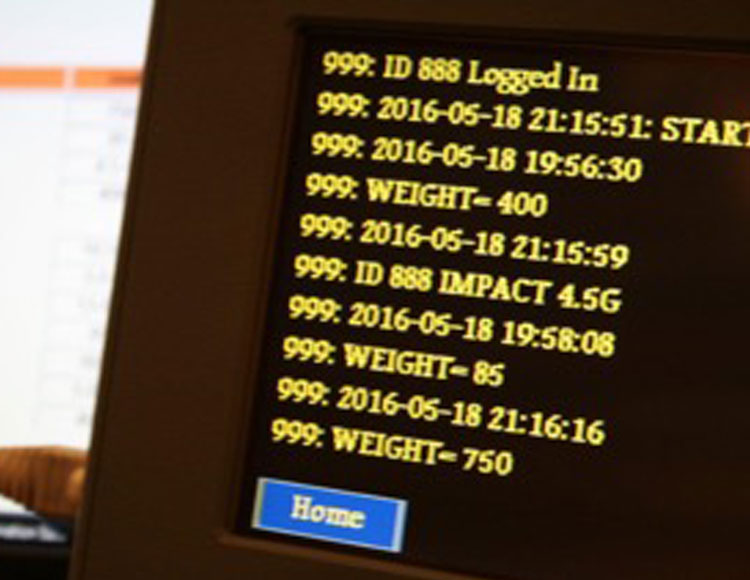

5.7” Color TFT Touch Screen Display |
Power Supply, AC Adapter, UL, CSA, RoHs 12 VDC, Operating Current with Ethernet Module, 700 mA |
Real Time Clock with Battery Backup, 16bit Micro Controller, 6 Mbit Flash Memory |

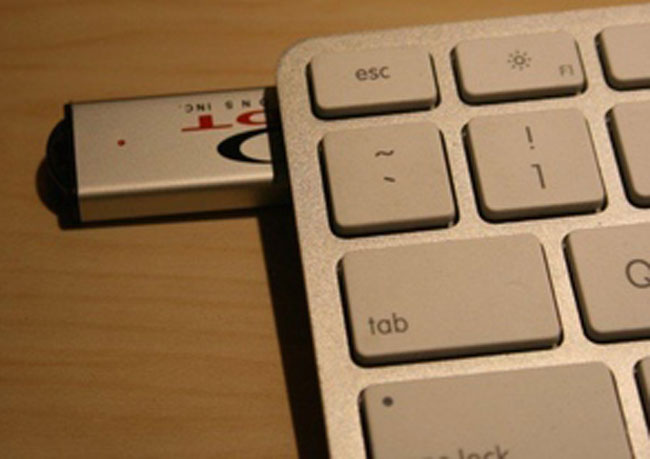

USB Port Optional |
RF Module, Long Distance, Clear Sight 40 km |
Harsh Environment Protection |
Modular Application Software Development |
Automatic IP Address Assignment |
Proprietary LAN Web Page Software |
Proprietary RF Communication Hub Software |
Ethernet Connectivity, Digi ME9210, Low Emission Design (FCC Class B) |
On Chip Hardware Encryption Engine |
Connector RJ-45 |
32-bit Digi NS921 Processor |
RF Long Range Module, XBee-Pro 900 MHz |
DigiMesh Network Protocol, 900 MHz License Free ISM Band Operation |
Antenna, RPSMA (A09-HASM-675A) FCC Approval MCQ-XBPSB |
Digital Indicator | |
---|---|

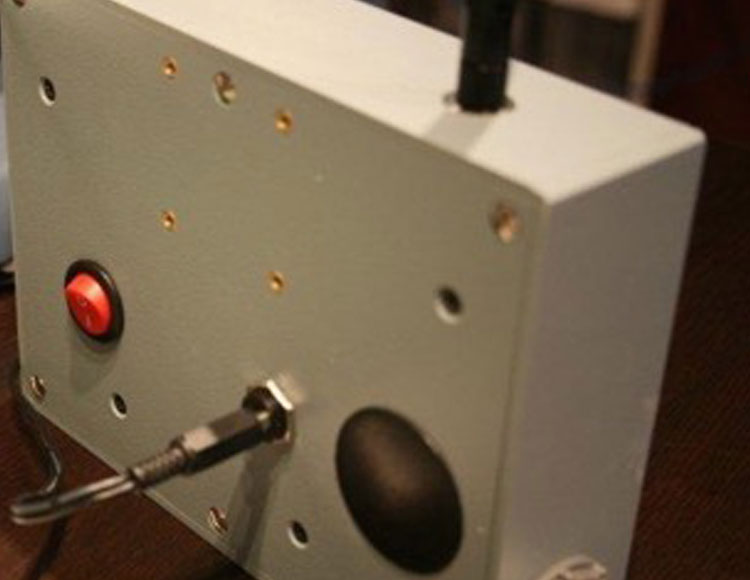

Housing | ABS enclosure, size 175 x 130 x 45 mm |
Real Time Clock | With battery backup |
Microprocessor | 16 bit |
Flash Memory | 64M |
Terminal Mode | Home, Clock & More and Admin |
Setup Email Mode | Up to Ten Accounts |

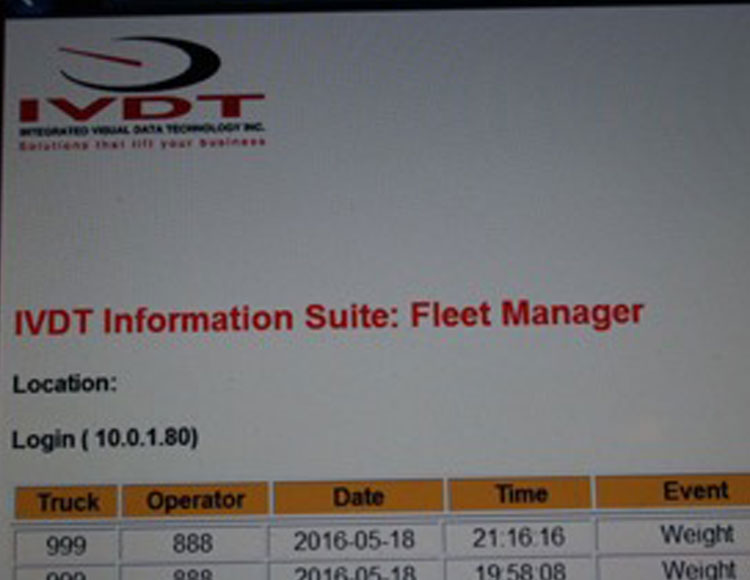

LAN Web Page | I.S. Information Suite: Fleet Manager |
Display | Color touch screen display with high contrast with LED backlight |
LCD Display Size | 5.7” |
LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
Operating Voltage | 12 to 60 VDC |
Current Consumption | <650 mA |
System Set Up | Password protection |
Communication Interface | Bluetooth V2.01 |
Communication Interface | USB V2.0 compliant |
RF module, long distance | 900 MHz License Free ISM Band Operation |
Alphanumeric keypad | LCD touch screen |
Ethernet Interface | Digi Connect ME9210 |
Ethernet Connector | RJ-45 |
Power Supply | AC Adapter 120 VAC to 12 VDC |
Power Switch | On/Off |
Operating Temperature With Standard LCD Display | -20°C to + 50°C |
Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
Storage Temperature | -40°C to + 80°C |
BASE STATION COMMUNICATION SYSTEMS | |
---|---|
BS-300 | Wireless RF Base station, USB recording, excel file data format recordings |
BS-400 | Wireless RF Base station with Ethernet connection, LAN Web Page |
BS-500 | Wireless RF Base station with Ethernet connection, Recycling Software, Email Notifications |
Reports | Contact manufacturer for additional options and customization |
