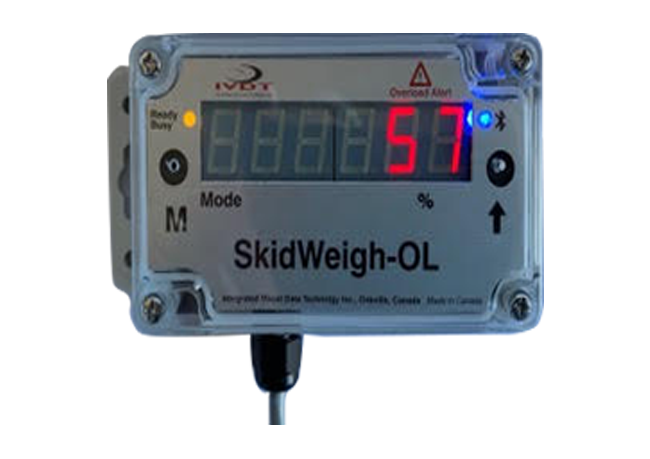

High Reach Truck Load Capacity Monitor In %

High Reach Truck Load Capacity Monitor In %


Application for all kinds of reach trucks regardless of the vehicle make, model, lift capacity or operating voltage.

Note: Lifted load will be shown in percentages of approved load capacity at specified load center as per vehicle name plate taken into account the maximum allowed lift height. System calibration is done by lifting calculated load to a maximum height established by the manufacturer.

  • Digital indicator, large six digit LED display, low temperature version
  • Bluetooth LED light
  • Ready / Busy LED light
  • Two pushbuttons automatic calibration for load % function calibration
  • Optional two % weighing channels
  • Compact size
  • Hydraulic pressure transducer
  • Operating voltage from 12 to 55 VDC
  • Load weighing accuracy shown in % of maximum vehicle lift capacity is 0.5 % to 1.0 %

Installation Manual
