Welcome to the Corporate IVDT Online Shop

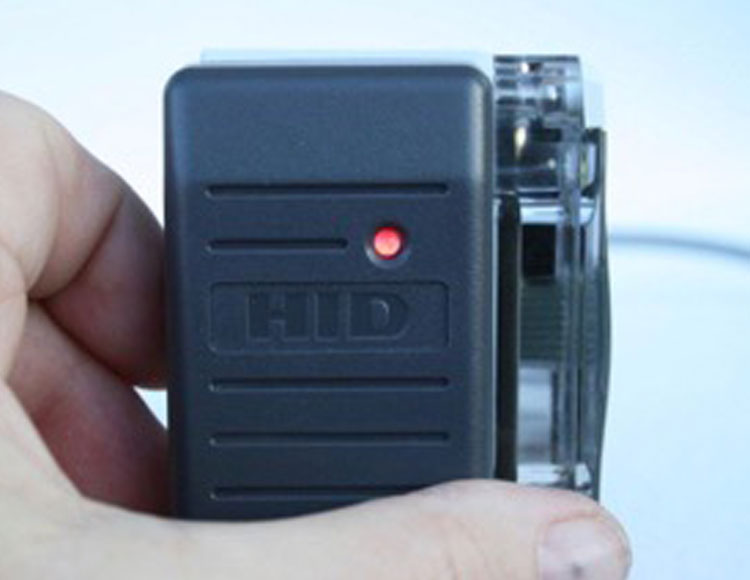

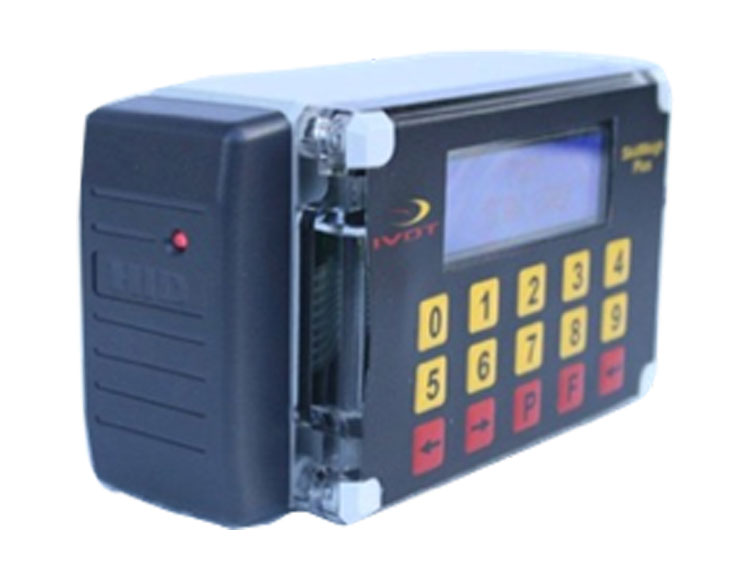

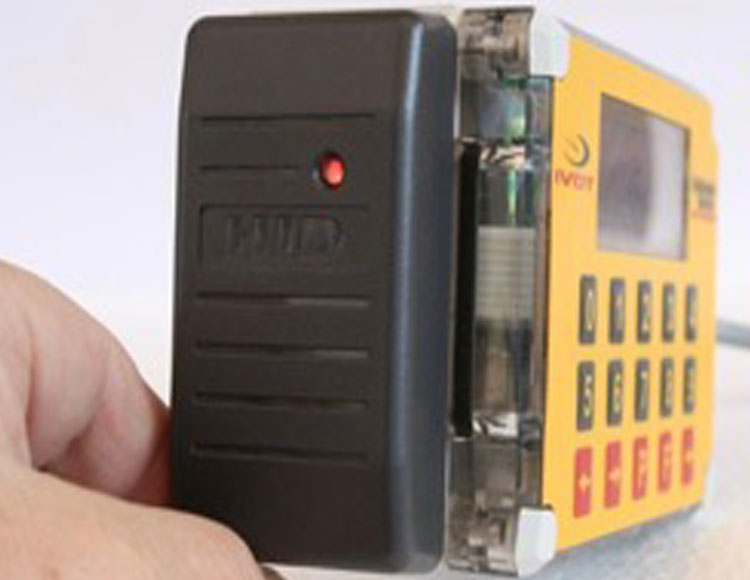

Material Handling Vehicle RFID Card Reader Access Control

Material Handling Vehicle RFID Card Reader Access Control, Increased Security and Efficiency


Self programming incorporated in SkidWeigh products
No additional external devices required to add or delete cards from the system
System capacity to up 250 operators ID# cards
Read range, typical 3”
Compact size
Transmit frequency 125 kHz
Card compatibility all 125 kHz HID proximity cards, long and short formats, as well as corporate 1000 cards format Extra security, recognizes card formats up to 85 bits with over 137 billion unique codes
Application for all kinds of material handling vehicles, regardless of the make, model or operating voltage

Compact size
Operational with SkidWeigh Products Installed on Vehicles Having Power Supply from 12 to 80 VDC
LED Bicolored Light (red and green)
IP67 Harsh Environment Protective Enclosure
Transient Surge Protection
Reverse Voltage Protection
Card Compatibility, All 125 kHz HID Proximity Cards
Self Programming with SkidWeigh Products

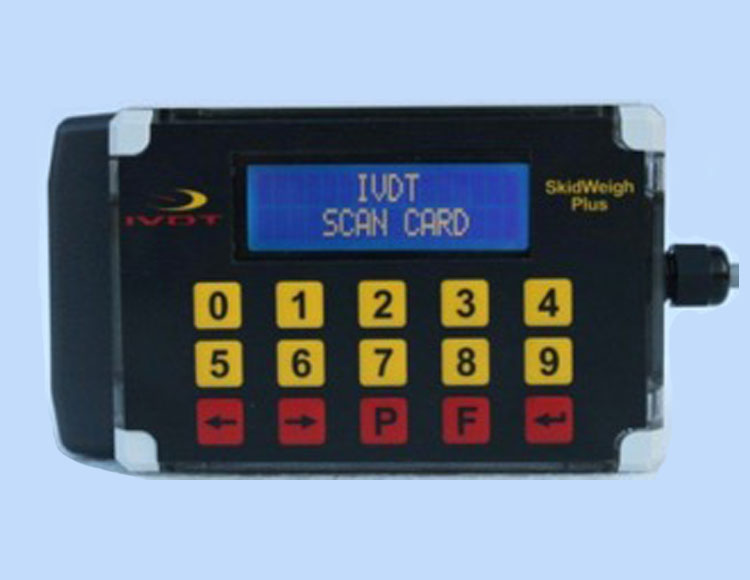

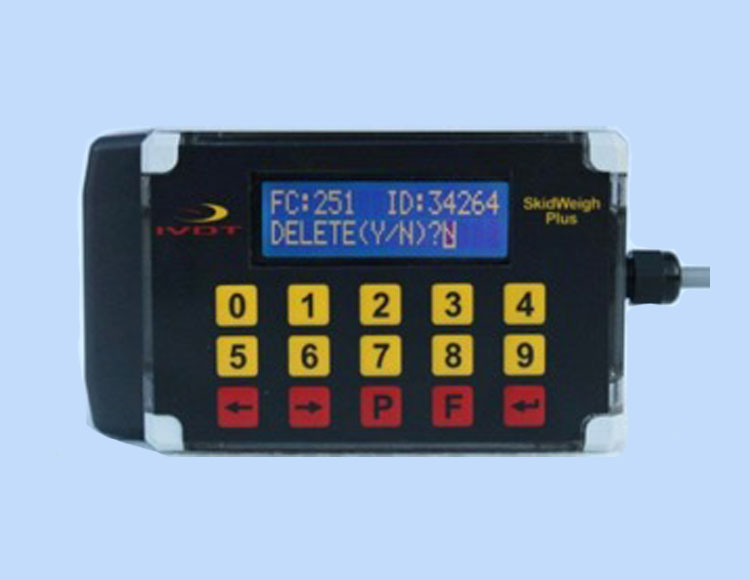

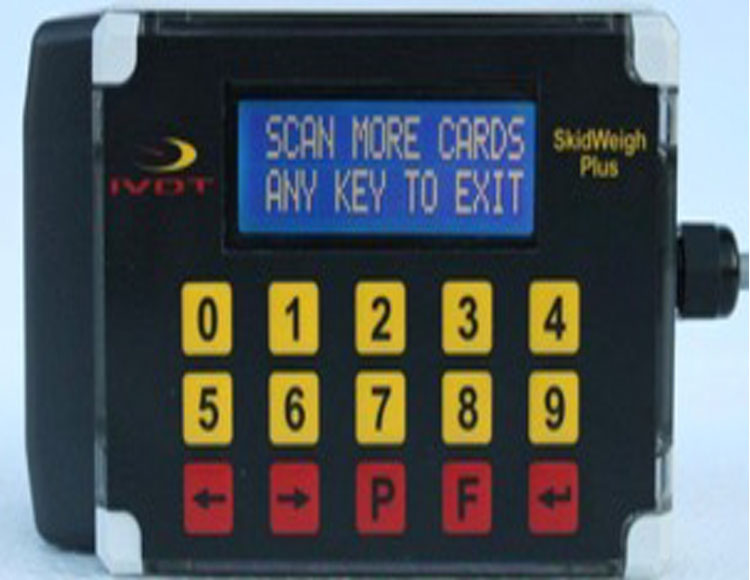

LCD Display Visual Set Up Instructions
Valid Operators Card Input Capacity, Up to 250 Cards
Extra Security, 85 bits with Over 139 Billion Unique Codes
Operating Temperature (-35 C to +65 C)
Operating Humidity 5-95% Non-Condensing
FCC Compliance, Part 15 of the FCC Rules
Reading Range Typical 3”
Operating Voltage With SkidWeigh Products, 12 to 80 VDC
Operating Temperature -35C to +65C
Operating Humidity 5-95% Non-Condensing
Technology Micro Controller
Communication Interface Wiegand
Cable Connector Liquid Tight Straight Thru Fitting for Electrical Cable
PC Board Environment protected
Transmit Frequency 125 kHz
LED light Bicolored, Red and Green
Transient Surge Protection Yes
Reverse Voltage Protection Yes
Extra Security Card Formats Up to 85 bits With Over 137 Billion Unique Codes
Card Format 26 bits, Open Format, H10301
