AC4 Options & Applications
AC4 Access Control and Safety Check: Managing OSHA
- Assigned Operator Codes
- OSHA Safety Notification
- Data and Event Backup
- Optional Wireless Real Time Notification
- Easy Installation
- No Training Required

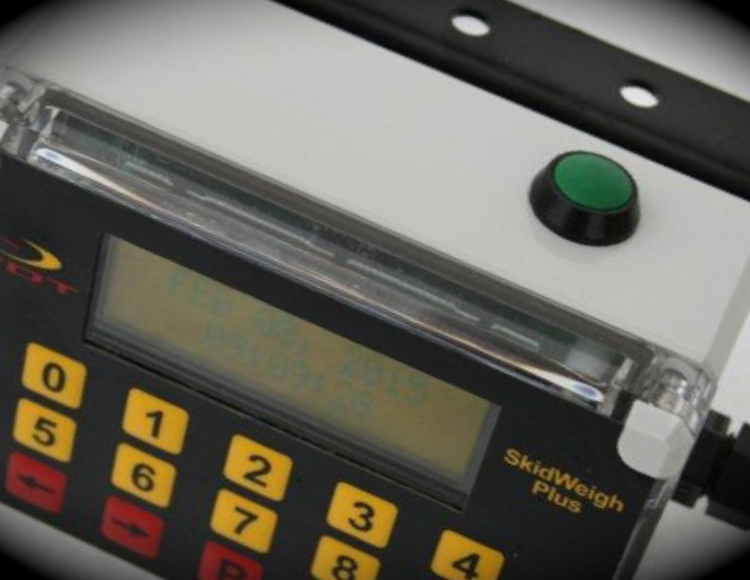

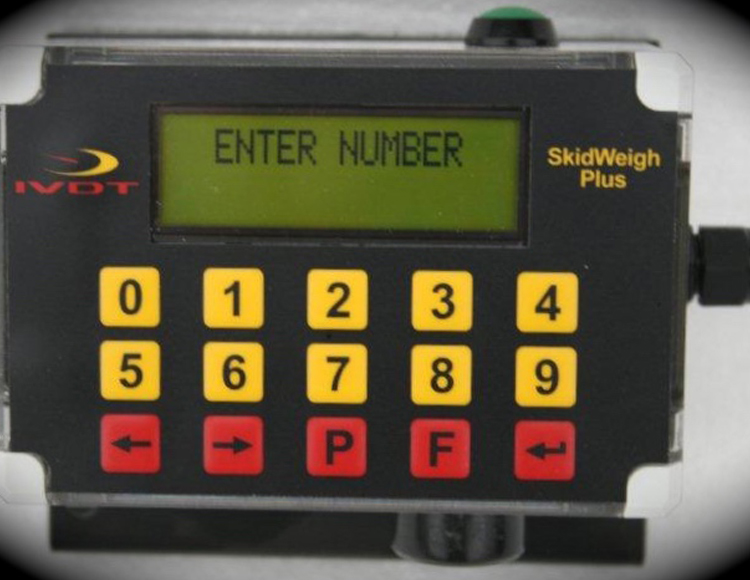

| SkidWeigh Plus AC4 |
|---|
| Compact 4” x 2” x 3” Digital Indicator |
| Large Easy Read Six Digit LED Display |
| No Button Design Easy to Use and Does Not Impede Productivity |
| IP67 Harsh Environment Protective Enclosure |
| Universal Power Supply from 12 to 60 VDC |
| Proprietary and Modular Software for Easy Application Customization |

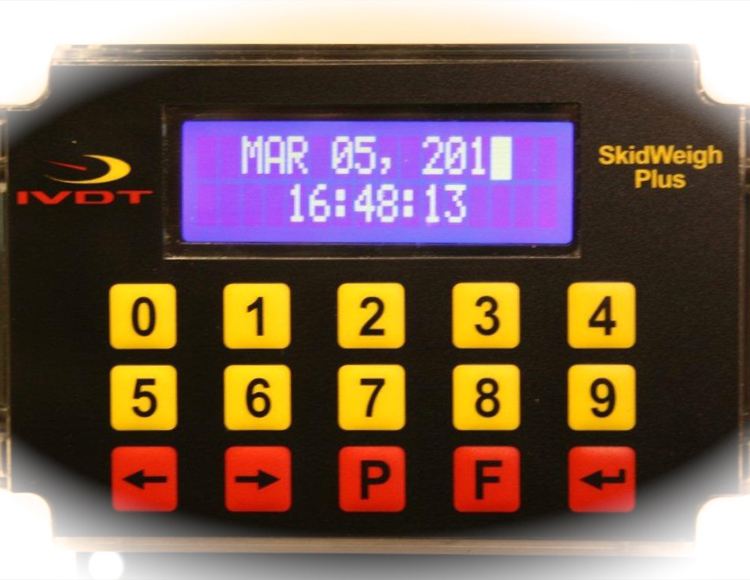

| Real Time Clock and Data Stamp Validation |
| Automatic Calibration Process |
| 'Lift-N-Weigh’ Operating Process Works in any Language |
| Operable with Forks, Attachments and Hydraulic Accumulators |
| Two Independent Weighing Channels |
| Reverse Polarity Protection |
| Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better |
| Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry |
| 2 Year Warranty |

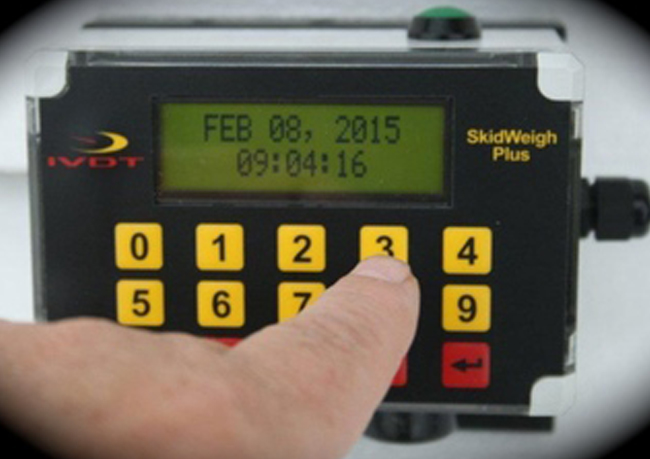

| Digital Indicator | |
|---|---|
| Housing | ABS NEMA Type 4X, size 120 x 80 x 55 mm |
| Real Time Clock | With battery backup |
| Flash Memory | 64M |
| 10 Bit Analog Channels | 2 |
| Digital Inputs | 2 |
| Display | LCD display 2 x 16 characters, super twist, high contrast with LED backlight |
| LCD Display Size | 68 x 27 x 11 mm |
| LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <65 mA |
| System Set Up | Password protection |
| Communication Interface | Bluetooth V2.01 |
| Alphanumeric keypad | 16 keys membrane keypad |
| Keypad | With functions overlay |
| Inputs | Four analog inputs |
| Language | English and French |
| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature With Standard LCD Display | -20°C to + 50°C |
| Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
| Storage Temperature | -40°C to + 80°C |
| Weight Function Graduations | 1,5,25,50 and 100 |
| Weighing Session Sample Rate | 16000 samples |
| Weighing Accuracy | Within +/- 0.1 to 1% of vehicle lifting capacity |
| Weighing Lifting Capacity | Up to 99999 pounds or kg |
| Output Relay | 2 relay’s, contact rating 1A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |
| Pressure Transducer | |
|---|---|
| Custom Manufactured | Swiss Made |
| Pressure Transducer Port | 1/4"-18 NPT male thread |
| Hydraulic Spike Protection | Built in pressure snubber |
| Proof Pressure | 2.5 x range or 6000 PSI |
| Environmental | NEMA 4X |
| Electrical Plug Connection | M12 x 1 metal thread |
| UL Standard | 873 |
| Shock | IEC 60068-2-6 |
| Power Supply | 8 to 33 V DC |
| Insulation Voltage | 500 V DC |
| Response Time | <1ms |
| Load Cycle | <100 Hz |
| Current Consumption | 4mA |
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Housing Material | Stainless steel (AISI 303) |
| Weight | 95 g |
| Installation | Unrestricted |
| EMC Conformity | EN 61326-2-3-2006 pressure sensor |
| Temperature Influence On Accuracy | Negligible |
| Exceeding Rapture Pressure | No media egress |
| 3 Wires Electrical Cable | Gauge 18 AWG STC SR-PVC, 1 meter |
| SkidWeigh AC4 | ||
|---|---|---|
| AT | Accumulated Total | Provides ED2 users the ability to calculate the total weight of a series of loads |
| SM | Overload Warning | This option notifies the operator when the load lifted is beyond the rated capacity of the lift truck |
| SM-AT | Audio Overload Warning | Same operating principal as the SM except with the inclusion of an audible notification upon overload |
| 2X | Two independent Weighing Channels | Allows ED2 users to use the system on both forks and quick disconnect attachments without recalibration each time |
| SL | Display in % of Lifting Capacity | ED2 system is configured to display the load lifted weight as a percentage of total lifting capacity |

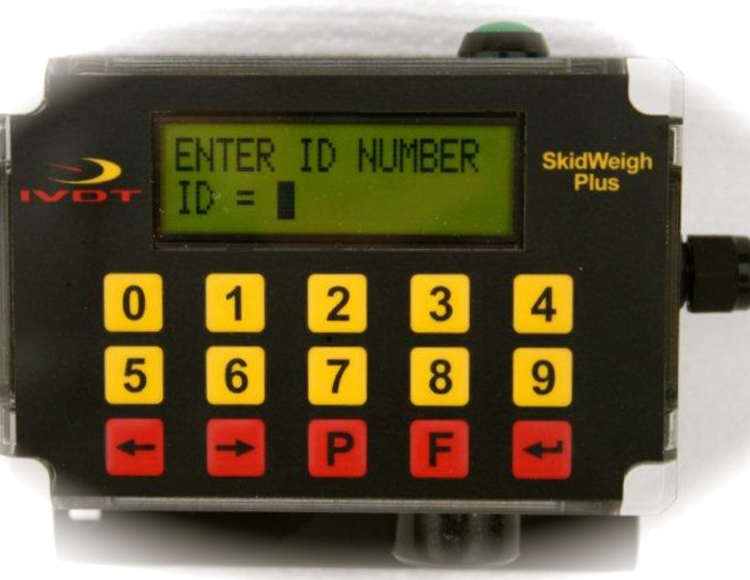

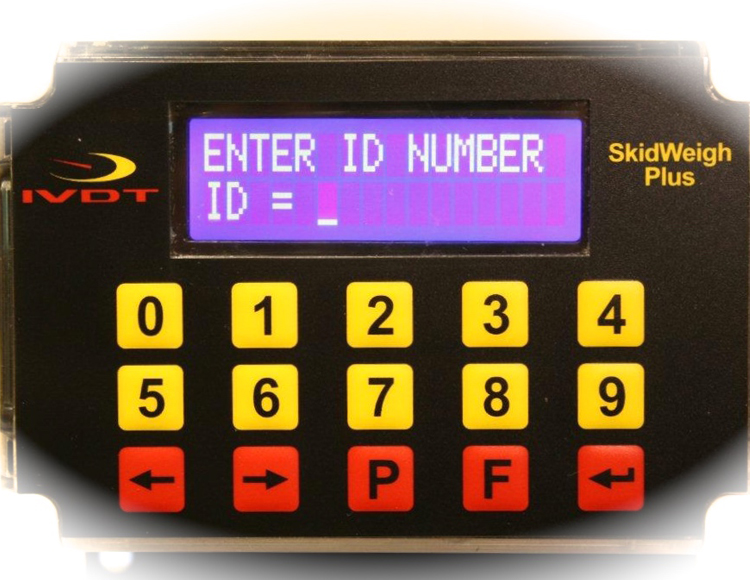

| ID | Operator ID | Systems prompts operator to identify him/herself via 3 digit code |
| AC | Access Control | The ED3 only allows authorized operator ID’s to operate the truck |

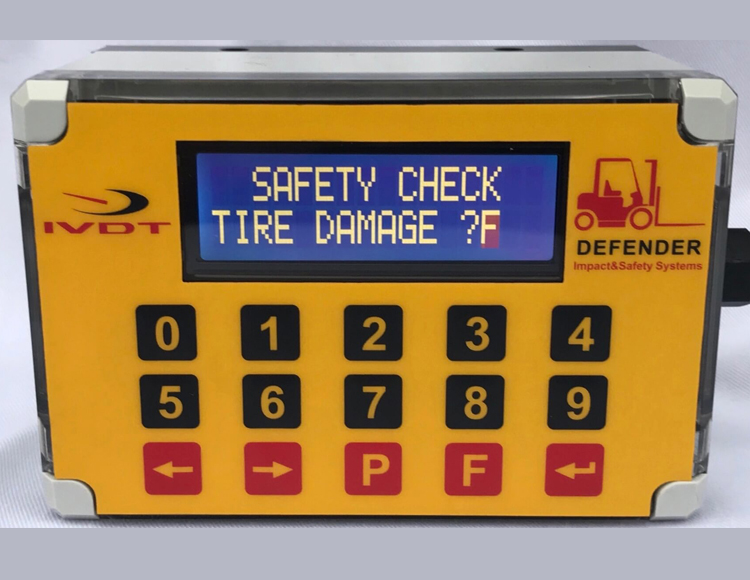

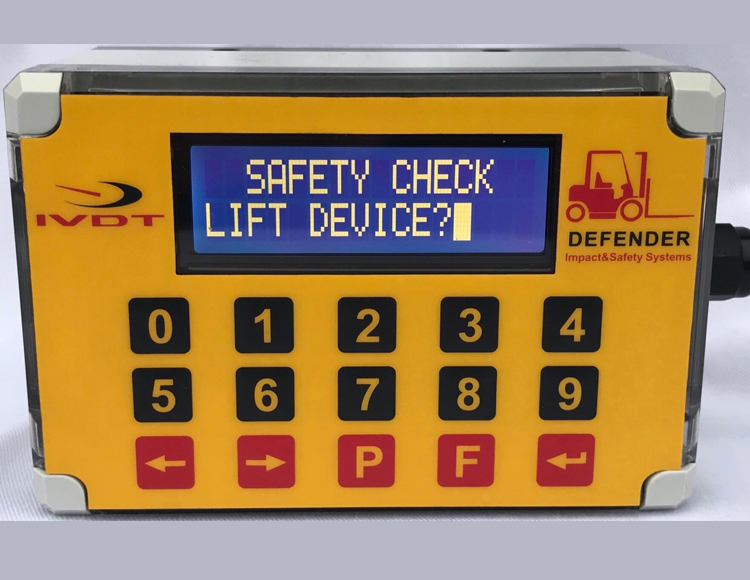

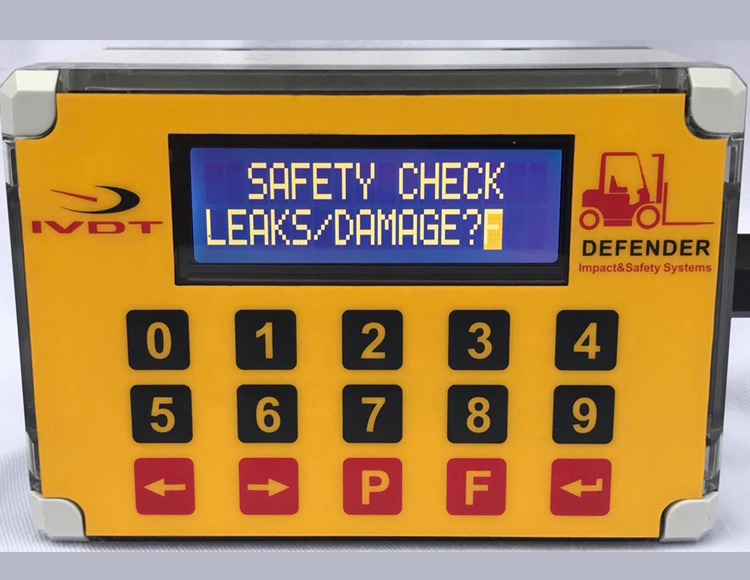

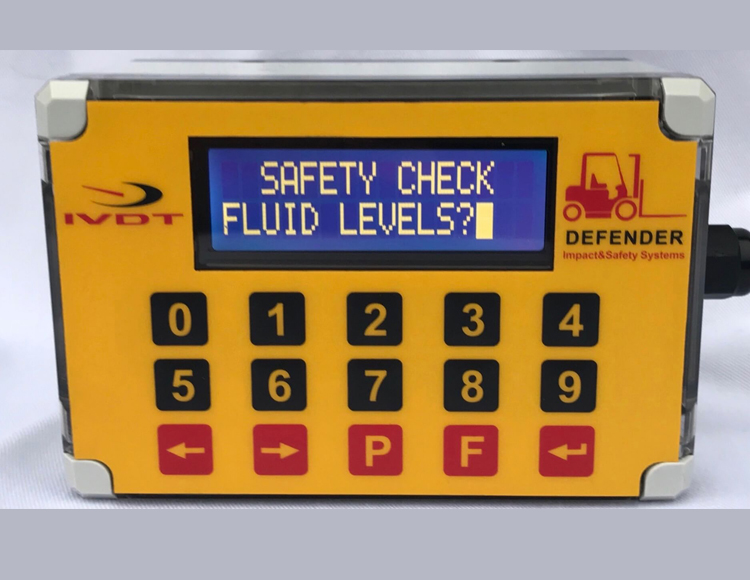

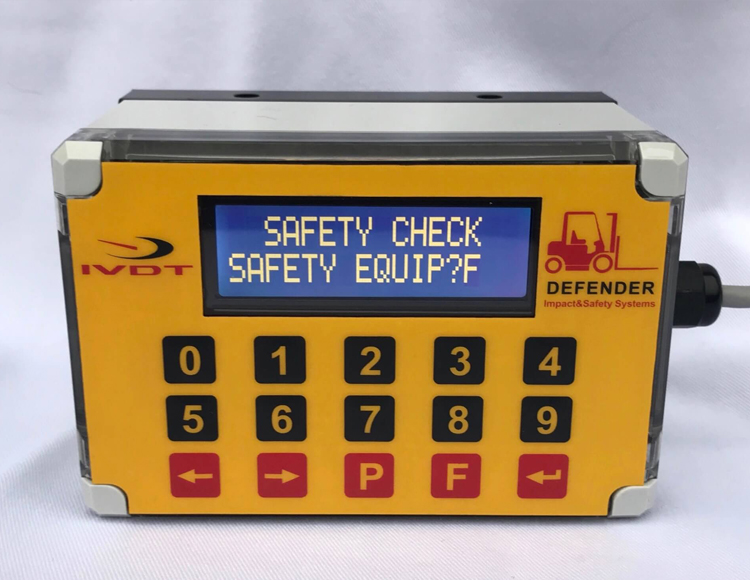

| OS | Safety Check | Prompts the operator to complete a certified pre-shif safety check |
| PC | Parts Count | Allows the user of the ED3 system the ability to calculate the number parts based based on pre-programming the part weight and tare |
| Printer Interface | Provided the ED2 user the ability to connect a printer to the system for purposes of printed receipt or labelling | |
| SkidWeigh AC4 Possible Configurations | |
|---|---|
| Above configurations based on popular industry requirements SL and 2X can not be used at the same time | |
| AC4-AT | Standard weighing system with accumulative load weight total |
| AC4-AT-SM | Standard weighing system with accumulative load weight total and visual overload warning |
| AC4-AT-SM-AT | Standard weighing system with visual overload warning |
| AC4-SM | Standard weighing system with visual overload warning |
| AC4-SM-AT | Standard weighing system with visual and audio overload warning |
| AC4-2X | Standard weighing system with two independent weighing channels |
| AC4-2X-SM | Standard weighing system with two independent weighing channels and visual overload warning for two weighing channels |
| AC4-2X-SM-AT | Standard weighing system with two independent weighing channels and visual/ audio overload warning for two weighing channels |
| AC4-2X-AT | Standard weighing system with two independent weighing channels and accumulative load weight total for each weighing channel |
| AC4-SL | Load weighing system showing in % of vehicle lifting capacity |
| AC4-SL-SM | Load weighing system showing in % of vehicle lifting capacity and visual overload warning |
| AC4-SL-SM-AT | Load weighing system showing in % of vehicle lifting capacity and visual/audio overload warning |
| AC4-SL-2X | Two independent load weighing system showing in % of vehicle lifting capacity |
| AC4-SL-2X-SM | Two independent load weighing system showing in % of vehicle lifting capacity with visual overload warning for each channel |
| AC4-SL-2X-SM-AT | Two independent load weighing system showing in % of vehicle lifting capacity with visual / audio overload warning for each channel |
| AC4-Print | Standard weighing system with accumulative load weight total with Bluetooth interface for onboard printer |
