ED3-EP Options & Applications

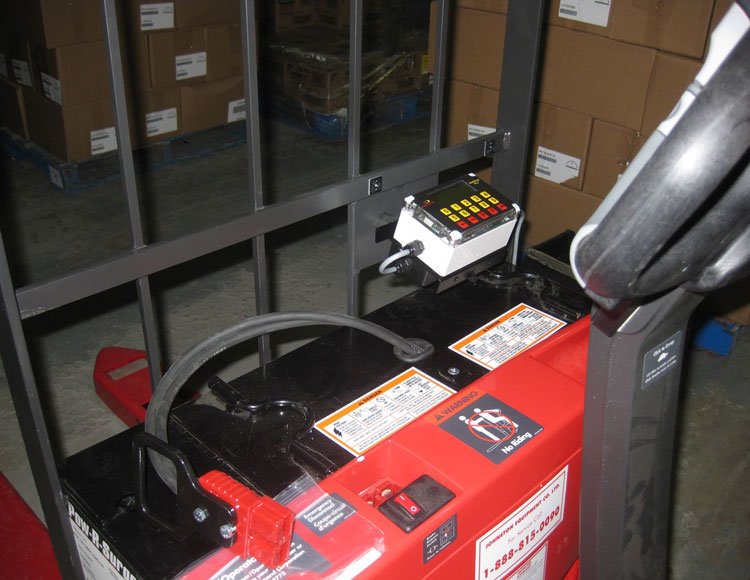

SkidWeigh Plus ED3-EP for Electric Pallet Trucks

  • Engineered specifically for Electric Pallet Trucks with ‘Lift Interrupt Technology’ ® Installs in approximately 2.5 hours
  • Does not de-rate or require an OEM modified capacity plate
  • Does not require maintenance or on-going calibration

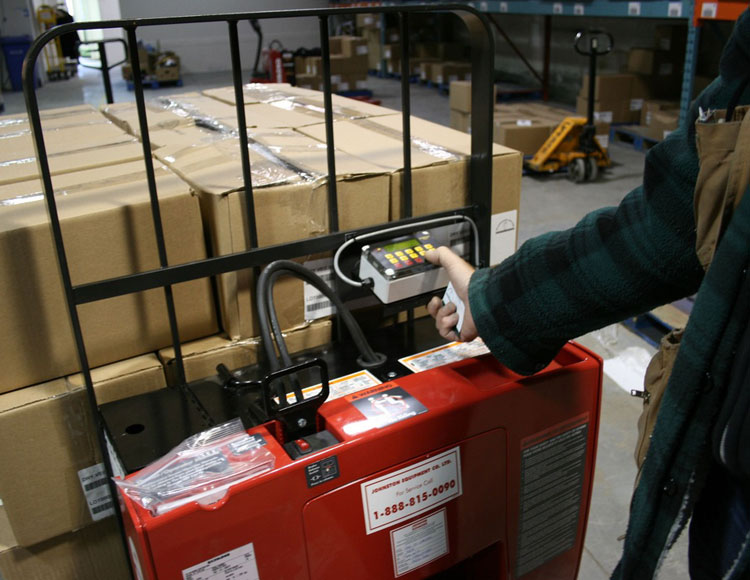

  • ‘Lift-N-Weigh’ operation, simplistic and intuitive approach to operator input
  • +/- 1% of rated capacity or better, best in the industry
  • Real Time Information, Time, Weigh, Operator ID, Customizable
  • Built specifically for lift trucks
  • IVDT manufactures to an IP65 rating suitable for the toughest environments
  • Modular design engineering means more options and customization
  • 2 Year Warranty
  • Rugged, Reliable, Accurate

Installation & Calibration Manual

Lift Accurate Technology Measurement Systems

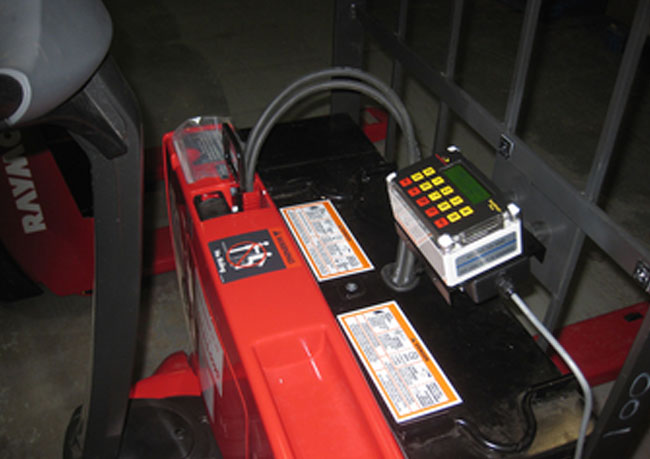

SKIDWEIGH PLUS ED3-EP

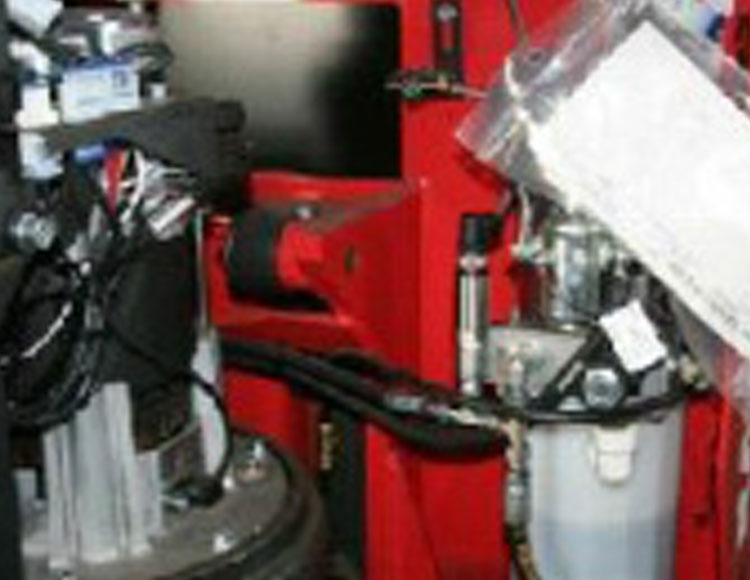

‘Lift Accurate Technology’ designed specifically for the hydraulic system of electric pallet trucks

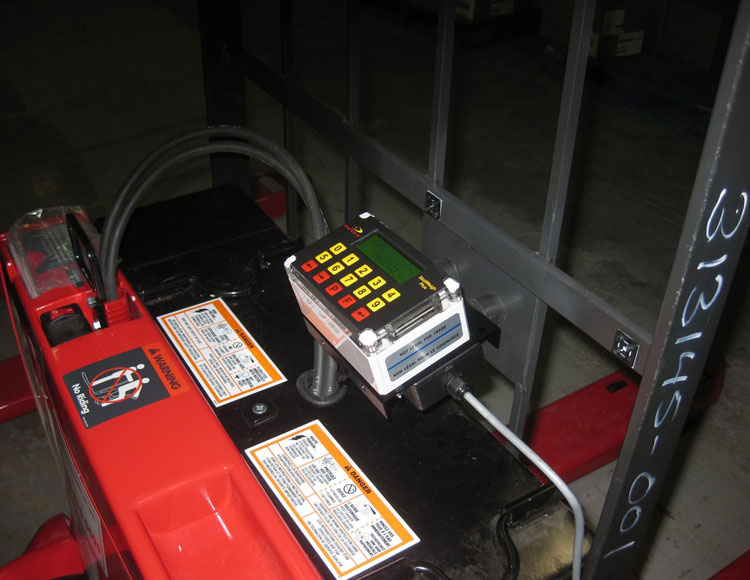

Compact 4” x 2” x 3” Digital Indicator
Large Easy Read Six Digit LED Display
No Button Design Easy to Use and Does Not Impede Productivity
IP67 Harsh Environment Protective Enclosure
Universal Power Supply from 12 to 60 VDC
Proprietary and Modular Software for Easy Application Customization

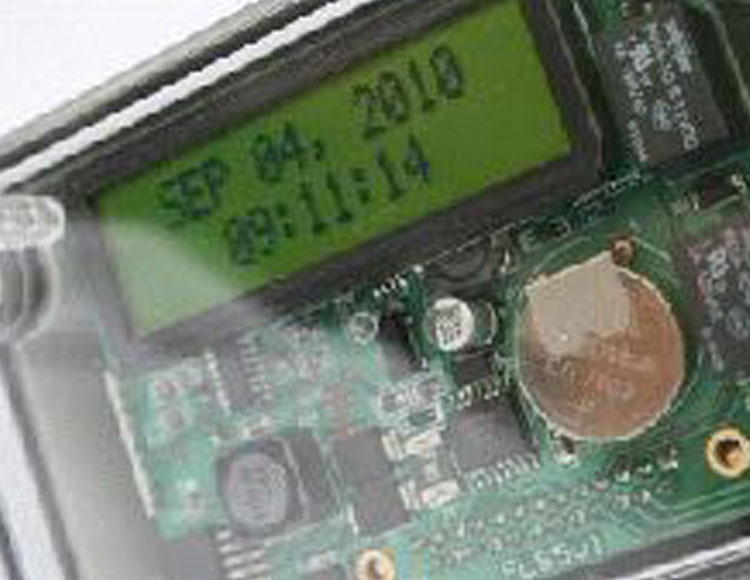

Real Time Clock and Data Stamp Validation
Automatic Calibration Process
'Lift-N-Weigh’ Operating Process Works in any Language
Operable with Forks, Attachments and Hydraulic Accumulators
Two Independent Weighing Channels
Reverse Polarity Protection
Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better
Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry
2 Year Warranty

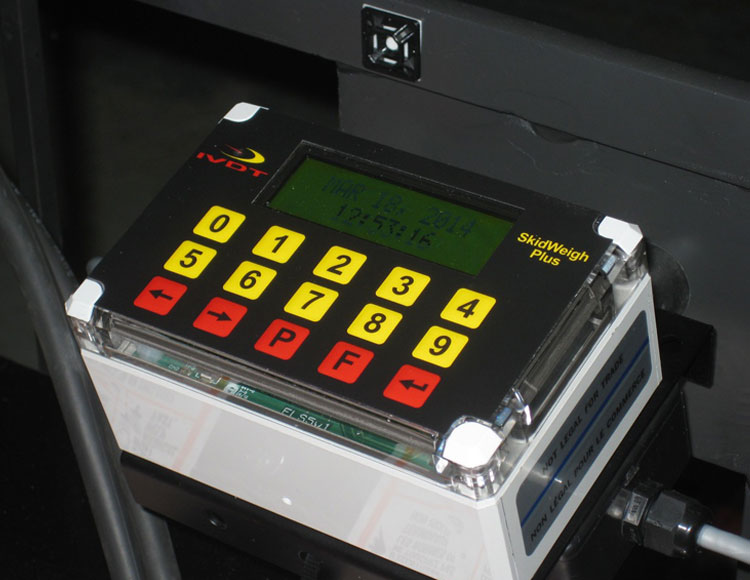

Digital Indicator
Housing ABS NEMA Type 4X, size 120 x 80 x 55 mm
Power Switch S.P.S.T
Display Six digits LED display
Operating Voltage 12 to 60 V DC
Current Consumption <80 mA
Technology Micro Controller
Communication Interface RS-232
Connector Liquid tight straight thru fitting for electrical cable
Operating Temperature -30°C to + 75°C
Storage Temperature -40°C to + 80°C
Weight Function Graduations 1,5 and 10
Weighing Session Sample Rate 16000 samples
Weighing Accuracy Within +/- 0.1 to 1% of vehicle lifting capacity
Weighing Lifting Capacity Up to 50000 pounds or kg
Output Relay Contact rating 1A, SPDT
Internal Buzzer 60 dB at 30 cm distance

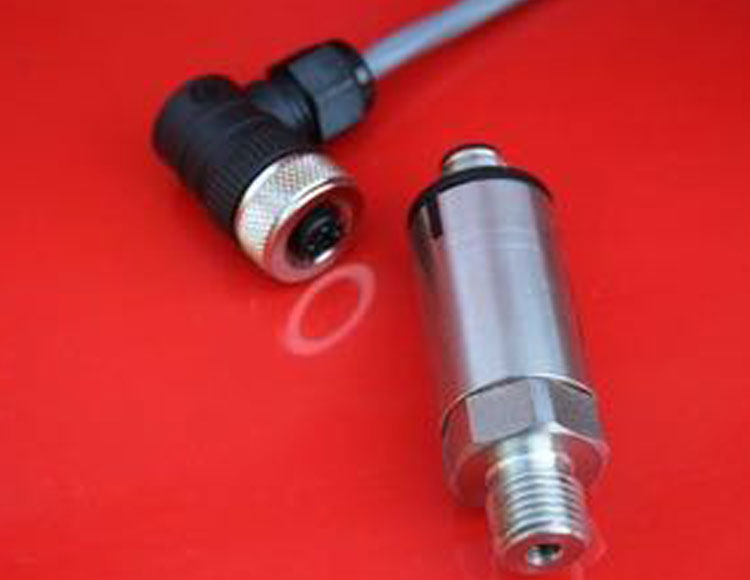

Pressure Transducer
Custom Manufactured Swiss Made
Pressure Transducer Port 1/4"-18 NPT male thread
Hydraulic Spike Protection Built in pressure snubber
Proof Pressure 2.5 x range or 6000 PSI
Environmental NEMA 4X
Electrical Plug Connection M12 x 1 metal thread
UL Standard 873
Shock IEC 60068-2-6
Power Supply 8 to 33 V DC
Insulation Voltage 500 V DC
Response Time <1ms
Load Cycle <100 Hz
Current Consumption 4mA
Reverse Polarity Protection Yes
Over Voltage Protection Yes
Short Circuit Protection Yes
Housing Material Stainless steel (AISI 303)
Weight 95 g
Installation Unrestricted
EMC Conformity EN 61326-2-3-2006 pressure sensor
Temperature Influence On Accuracy Negligible
Exceeding Rapture Pressure No media egress
3 Wires Electrical Cable Gauge 18 AWG STC SR-PVC , 1 meter

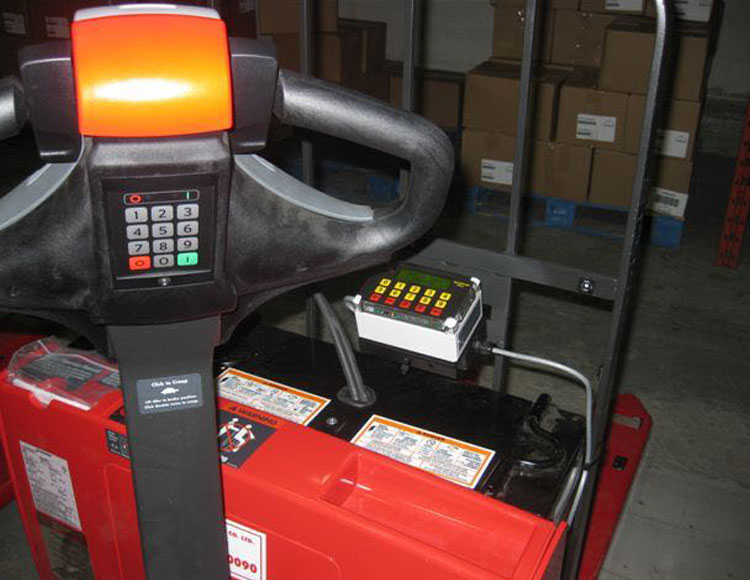

SkidWeigh ED2-EP
AT Accumulated Total Provides ED2-EP users the ability to calculate the total weight of a series of loads
2X Two independent Weighing Channels Allows ED2-EP users to use the system on both forks and quick disconnect attachments without recalibration each time
Print Printer Interface Provided the ED2 user the ability to connect a printer to the system for purposes of printed receipt or labelling
SkidWeigh ED2-EP Possible Configurations
ED2-EP Standard weighing system
ED2-EP-AT Standard weighing system with accumulative load weight total
ED2-EP-2X Standard weighing system with two independent weighing channels
ED2-EP-2X-AT Standard weighing system with two independent weighing channels and accumulative load weight total for each weighing channel
ED2-Print Standard weighing system with accumulative load weight total with interface for RS-232 onboard printer (RS-232 cable and power cable included)
