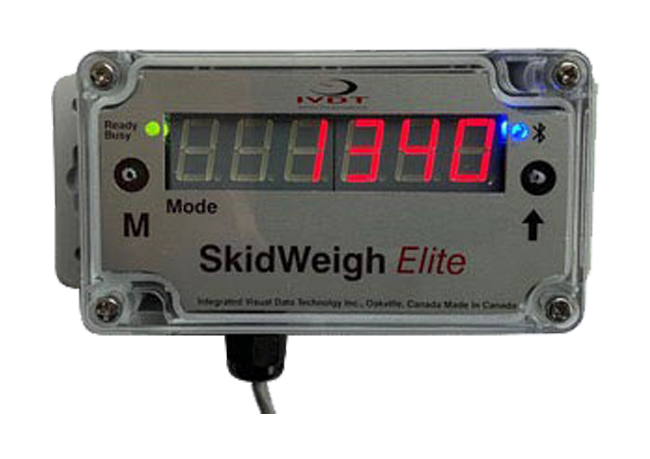

High Reach Truck Load Capacity Monitor Weight Scale

High Reach Truck Load Capacity Monitor Weight Scale


Application for all kinds of reach trucks regardless of the vehicle make, model, lift capacity or operating voltage.

Note: Lifted load will be shown in kg or pounds. The overload audio / visual alert shown in kg or pounds will be activated when overloaded forks are lifted just above the ground. System calibration is done by lifting known load just above the ground.

  • Digital indicator, large six digit LED display, low temperature version
  • Bluetooth module to communicate with onboard Bluetooth printer
  • Automatic Bluetooth pairing to onboard printer
  • Internal audio overload alert
  • Bluetooth LED light
  • Ready / Busy LED light
  • Two pushbuttons automatic calibration for load weight function calibration
  • Optional two weighing channels
  • Compact size
  • Hydraulic pressure transducer
  • Relay for external optional overload warning alert, dry contacts SPDT
  • Load weighing accuracy from 0.5% to 1.0 % of maximum vehicle lift capacity
  • Operating voltage from 12 to 55 VDC

Installation Manual
