IC Trucks Load Capacity Monitor In %

IC Trucks Load Capacity Monitor In %


Application for all kinds of IC material handling vehicles regardless of the vehicle make, model, lift capacity or operating voltage.

Note: The overload audio / visual alert shown in % will be activated when overloaded forks are lifted just above the ground. System calibration is done by lifting known load just above the ground.

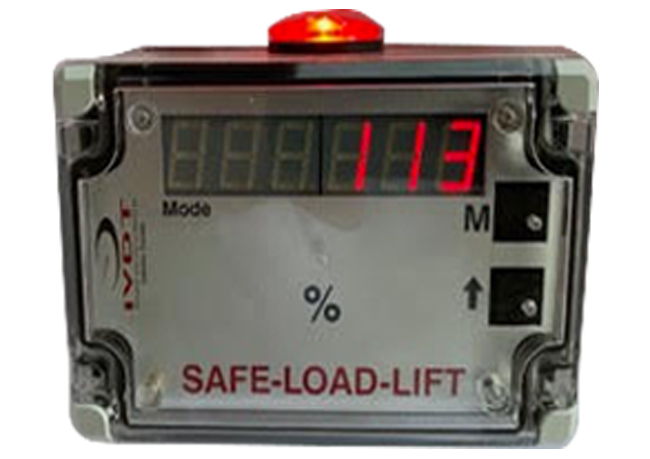

  • Digital indicator, large six digit LED display, low temperature version
  • Strobe light, ultra bright red indicator and audio alert for vehicle overload is included
  • Two pushbuttons automatic calibration for load % function calibration
  • Optional two % channels
  • Compact size
  • Hydraulic pressure transducer
  • Relay for external optional overload alert warning, dry contacts SPDT
  • Operating voltage from 12 to 55 VDC
  • Load weighing accuracy shown in % of maximum vehicle lift capacity is 0.5 % to 1.0 %
