Pallet Height Indicators
Pallet Height Indicators
- Applicable for all kinds of forklifts with standard mast
- Applicable for all kinds of forklifts with short mast (LTL transportation operations)
- Usage for vehicles without CubeFreight systems

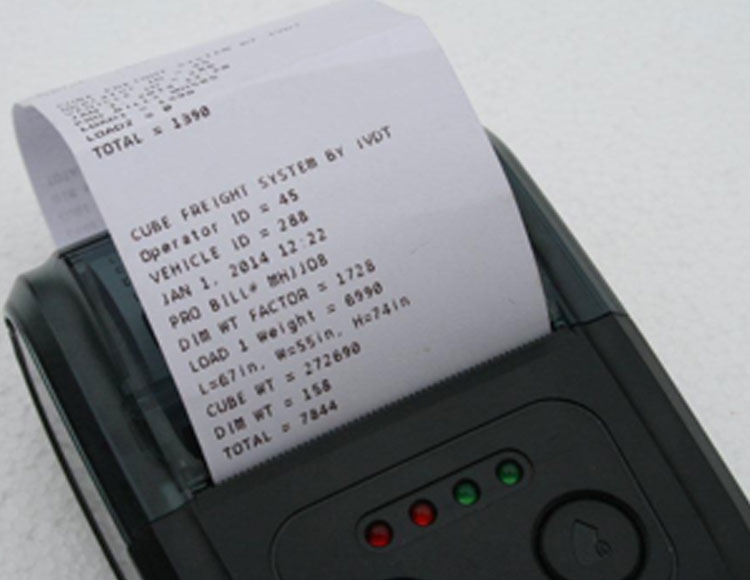

- Usage for vehicles equipped with IVDT dimensioning & weighing systems

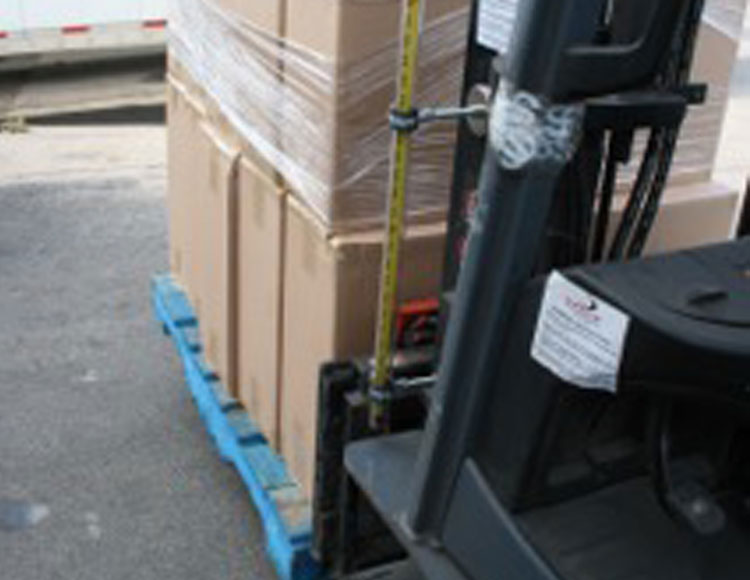

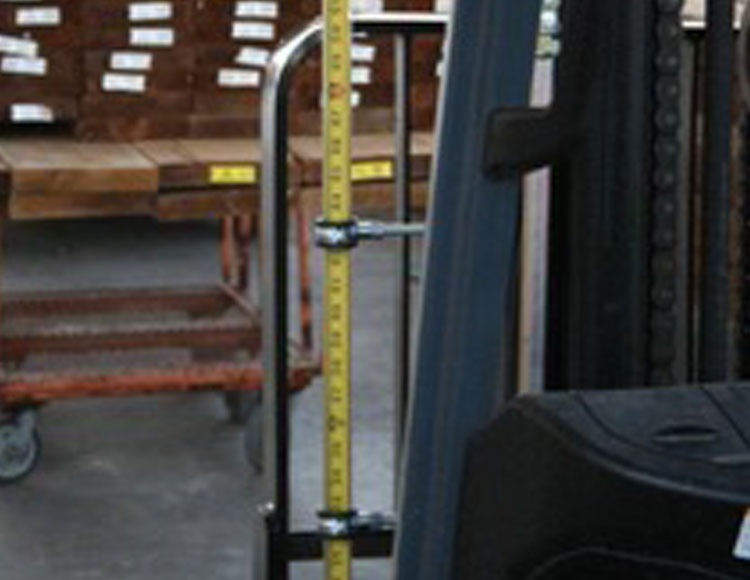

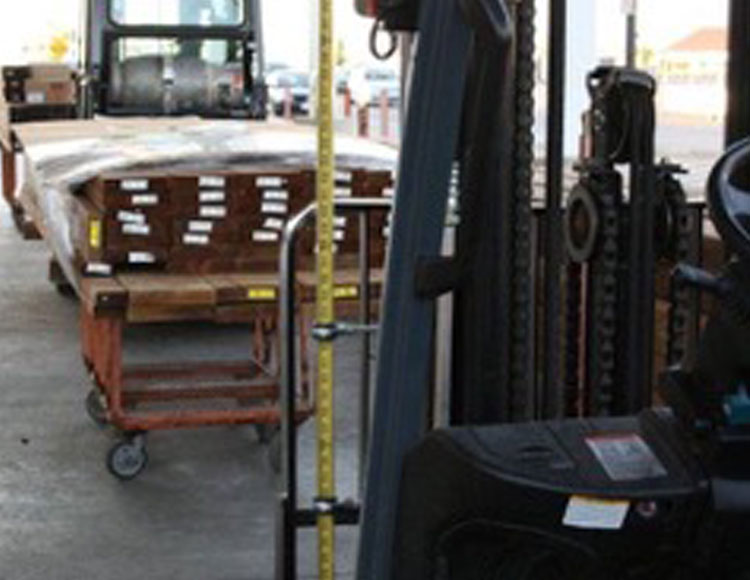

| PHI-72 PALLET HEIGHT INDICATOR |
|---|
| Installation time 60 seconds |

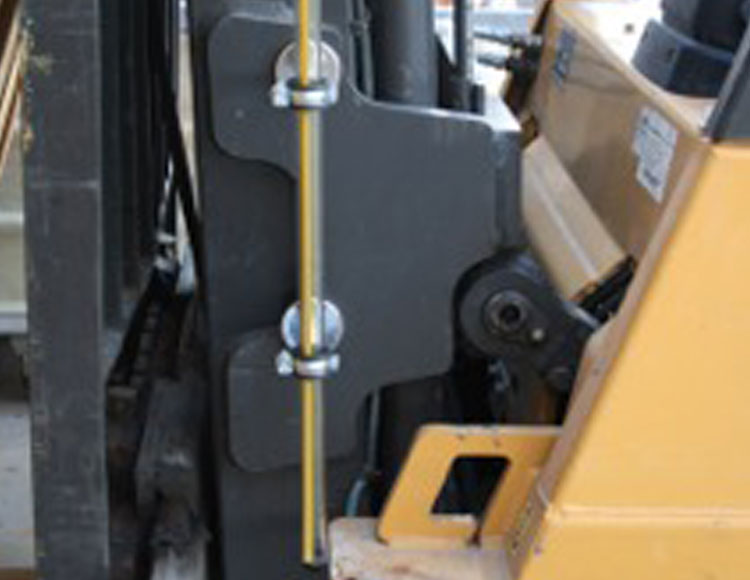

| Attaches directly to the mast via industrial strength magnetic cups, no installation required |
| Measuring range from 24” to 72” |
| Large height measurement readout |
| No need for the operator to leave the vehicle seat |
| Can be easily re-installed to the different vehicles |
| No need for operator to use standard measuring tape |
| Removable in seconds |
| Applicable for all non-pantograph masts |

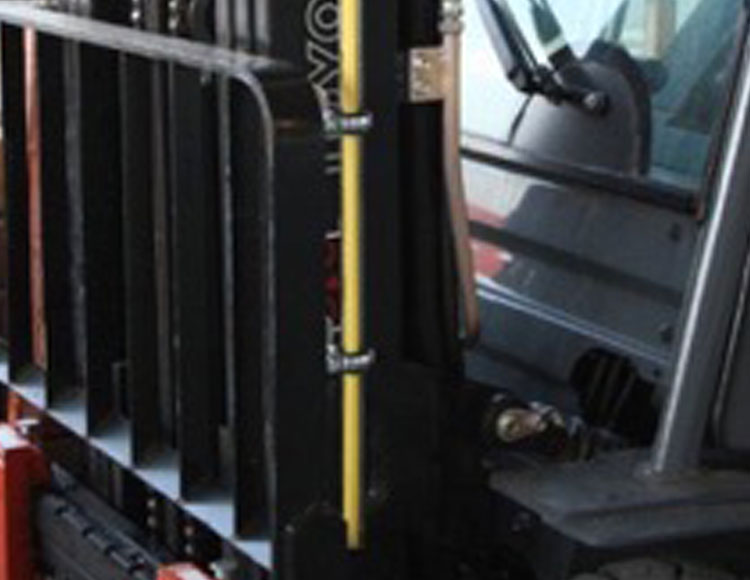

| Works on either side of mast |
| PHI-72 ASSEMBLY | |
|---|---|
| Housing | PETG Clear tube housing, 1” diameter, extra heavy wall, wall thickness 0.063 |
| Tape measure | Large digits, 24” to 72” |
| Tube housing finish | Protective cups for both ends of tube |

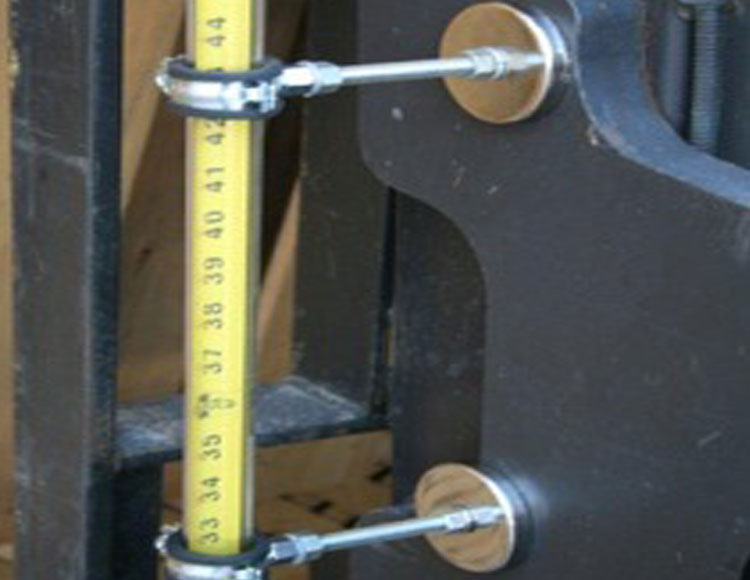

| Clamps | Cushioned clamp with 3/8” cap nut, with 3/8-16 threaded bolt, two nuts |

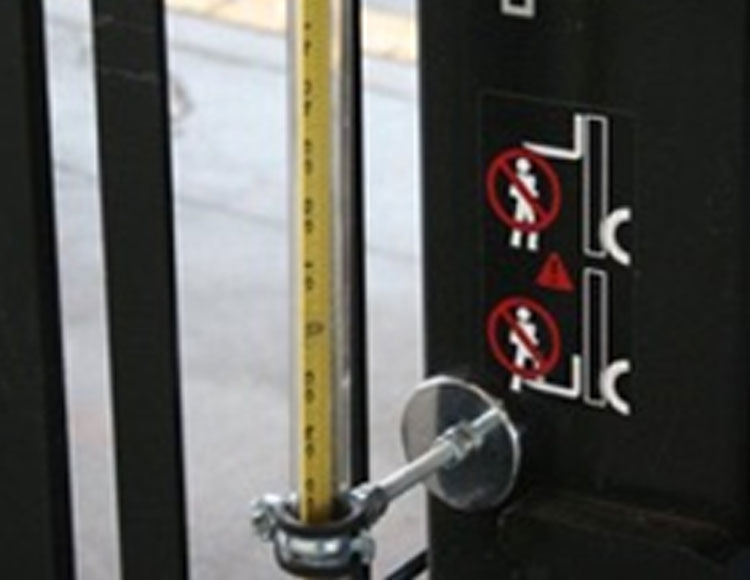

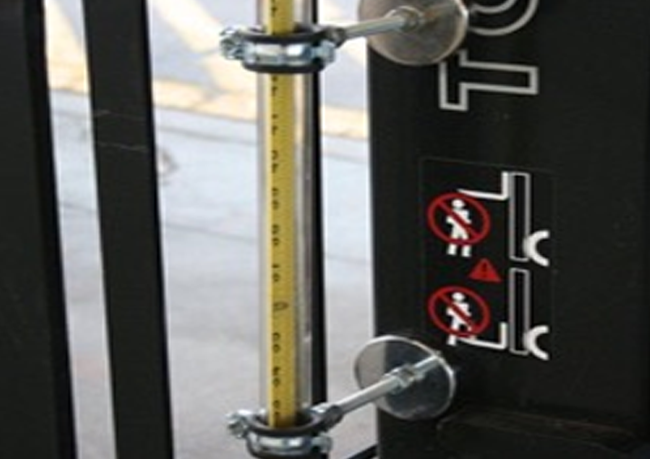

| Magnetic cups | Chrome w/hole .278” |
| Options | |
|---|---|
| PHI-96 | pallet height assembly, measuring range from 24” to 96” |
