CubeFreight LTL Options & Applications
CubeFreight LTL Series, Economical Freight Weight & Dimensioning Verification Systems
Installs in approximately 2.5 hours
Does not de-rate or require an OEM modified capacity plate
Automatic measurement cycle
RF wireless communication to the base station
No monthly fees
Ethernet interface from base station to customer network
Does not require maintenance or on-going calibration
‘Lift-N-Weigh’ operation, simplistic and intuitive approach to operator input
+/- 1% of rated capacity or better, best in the industry

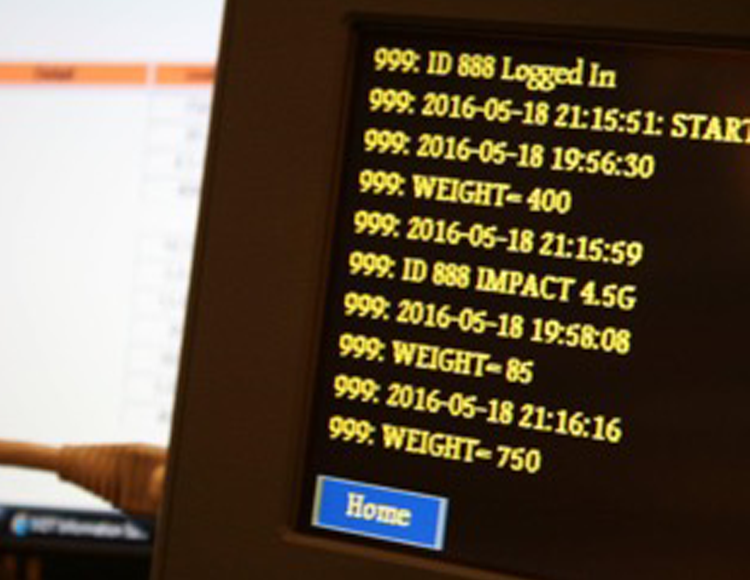

Real Time Information
Vehicle ID #
Time / Date
Load Weight

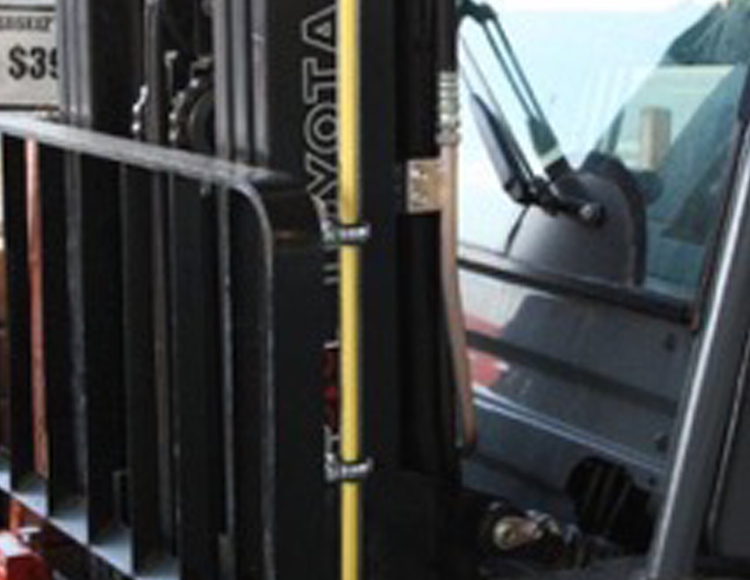

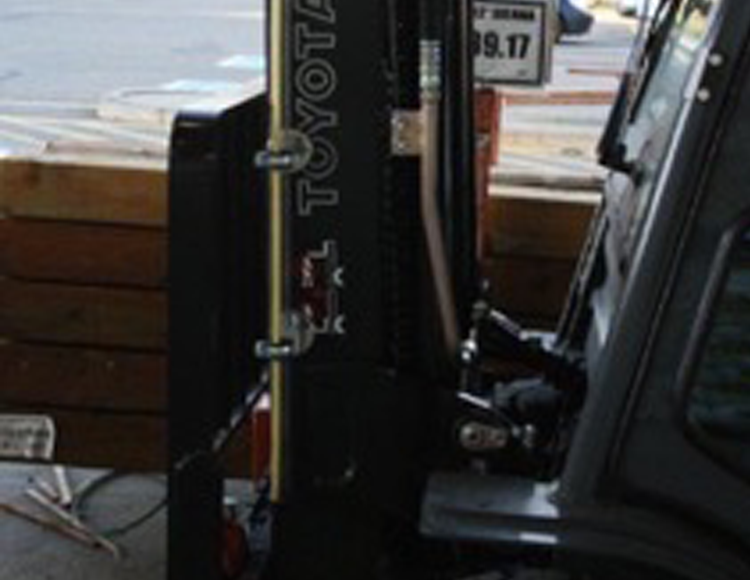

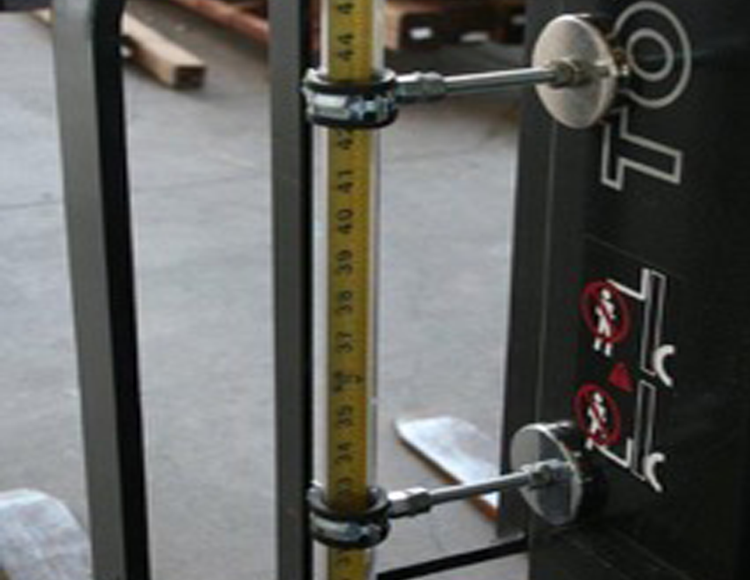

Pallet Dimensions, W x L X H
Barcode ID#
or manual input for pallet ID
Operator ID

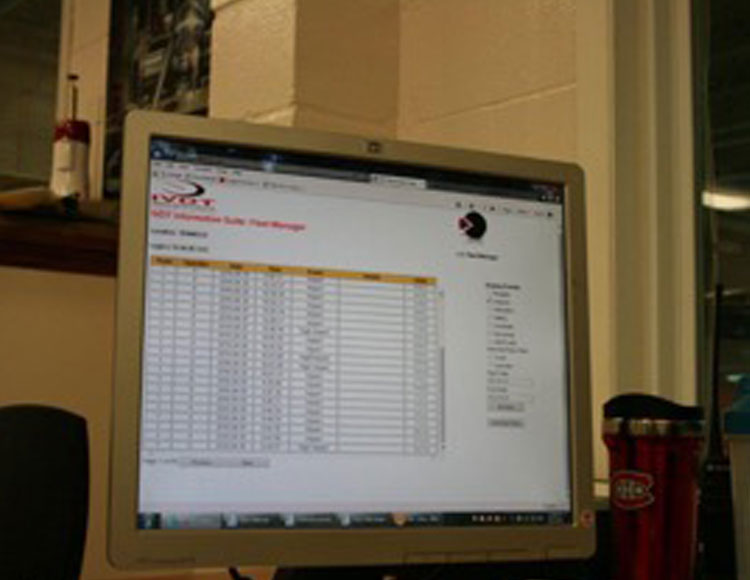

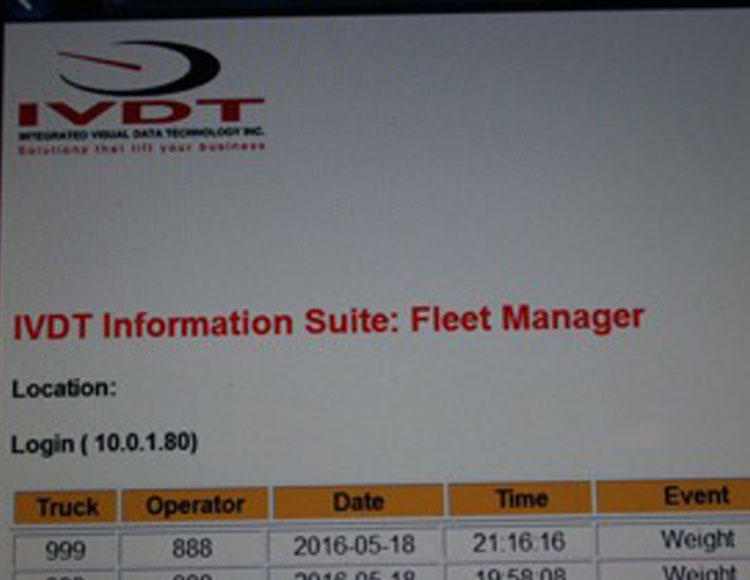

Customizable software for LTL operations
Built specifically for lift trucks application on typical LTL loading dock facility
IVDT manufactures to an IP67 rating suitable for the toughest environments
Modular design engineering means more options and customization
2 Year Warranty

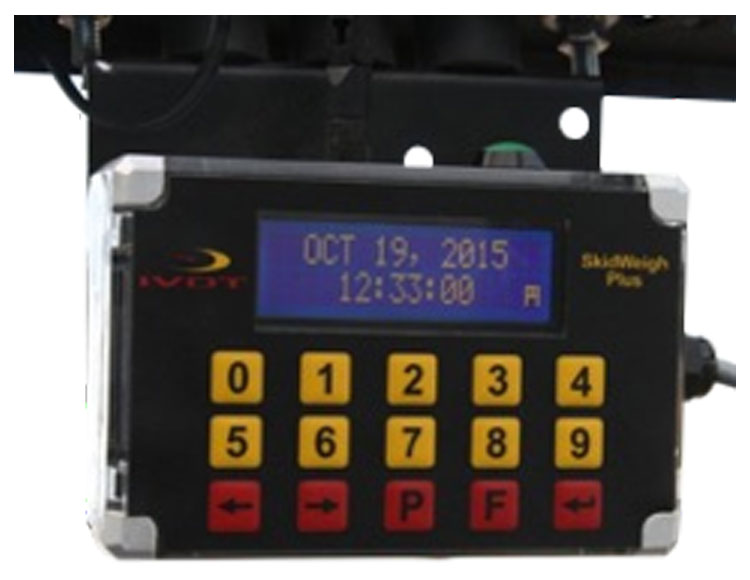

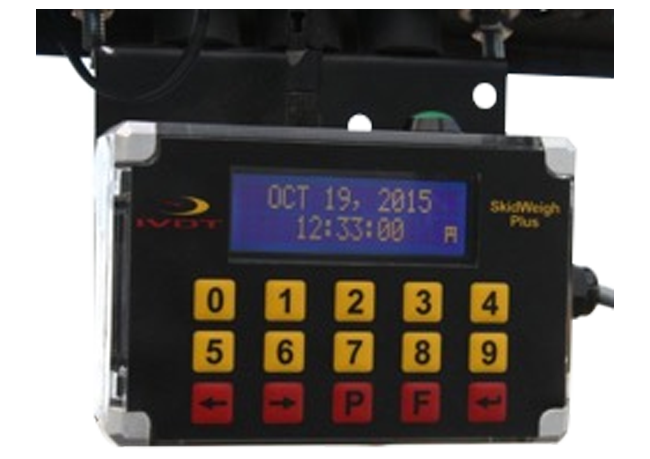

| CUBEFREIGHT LTL SKIDWEIGH PLUS SERIES |
|---|
| Compact 4” x 2” x 3” Digital Indicator |
| Large Easy to Read Six Digit LCD Display |
| No Button Design Easy to Use and Does Not Impede Productivity |
| IP67 Harsh Environment Protective Enclosure |
| Universal Power Supply from 12 to 60 VDC |
| Proprietary LTL and Modular Software for Easy Application Customization |
| Real Time Clock and Data Stamp Validation |
| Automatic Calibration Process |
| 'Lift-N-Weigh’ Operating Process |
| Operable with Forks, Attachments and Hydraulic Accumulators |
| Fully Automatic Measurement Cycle |
| Reverse Polarity Protection |
| Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better |
| Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry |
| 2 Year Warranty |
| DIGITAL INDICATOR | |
|---|---|
| Housing | ABS NEMA Type 4X, size 120 x 80 x 55 mm |
| Real Time Clock | With battery backup |
| Flash Memory | 64M |
| 10 Bit Analog Channels | 2 |
| Digital Inputs | 2 |
| Display | LCD display 2 x 16 characters, super twist, high contrast with LED backlight |
| LCD Display Size | 68 x 27 x 11 mm |
| LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <65 mA |
| System Set Up | Password protection |
| Communication Interface | Bluetooth V2.01 |
| Alphanumeric keypad | 16 keys membrane keypad |
| Keypad | With functions overlay |
| Inputs | Four analog inputs |
| Language | English and French |
| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature With Standard LCD Display | -20°C to + 50°C |
| Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
| Storage Temperature | -40°C to + 80°C |
| Weight Function Graduations | 1,5,25,50 and 100 |
| Weighing Session Sample Rate | 16000 samples |
| Weighing Accuracy | Within +/- 0.1 to 1% of vehicle lifting capacity |
| Weighing Lifting Capacity | Up to 99999 pounds or kg |
| Output Relay | 2 relay’s, contact rating 1A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |
| Pressure Transducer | |
|---|---|
| Custom Manufactured | Swiss Made |
| Pressure Transducer Port | 1/4"-18 NPT male thread |
| Hydraulic Spike Protection | Built in pressure snubber |
| Proof Pressure | 2.5 x range or 6000 PSI |
| Environmental | NEMA 4X |
| Electrical Plug Connection | M12 x 1 metal thread |
| UL Standard | 873 |
| Shock | IEC 60068-2-6 |
| Power Supply | 8 to 33 V DC |
| Insulation Voltage | 500 V DC |
| Response Time | <1ms |
| Load Cycle | <100 Hz |
| Current Consumption | 4mA |
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Housing Material | Stainless steel (AISI 303) |
| Weight | 95 g |
| Installation | Unrestricted |
| EMC Conformity | EN 61326-2-3-2006 pressure sensor |
| Temperature Influence On Accuracy | Negligible |
| Exceeding Rapture Pressure | No media egress |
| 3 Wires Electrical Cable | Gauge 18 AWG STC SR-PVC, 1 meter |
| CUBEFREIGHT LTL SKIDWEIGH PLUS SERIES | ||
|---|---|---|
| RFID | Proximity Card Reader | System equipped with HID card reader, 250 valid operators ID# |
| SM | Overload Warning | This option notifies the operator when the load lifted is beyond the rated capacity of the lift truck |
| SM-AUDIO | Audio Overload Warning | Same operating principal as the SM except with the inclusion of an audible notification upon overload |
| ID | Operator ID | Systems prompts operator to identify him/herself via 3 digit code |
| OS | Safety Check | Prompts the operator to complete a certified pre-shif safety check |
