    IVisibility-RF Options & Applications

    IVisibility-RF Complete Equipment Downtimes Reporting

    • Automatic recording of true operational unidentified downtime within utilization factor(No operator input required)
    • Up to five justified default downtime reasons. Operator input required, otherwise system defaults automatically to unidentified downtime.

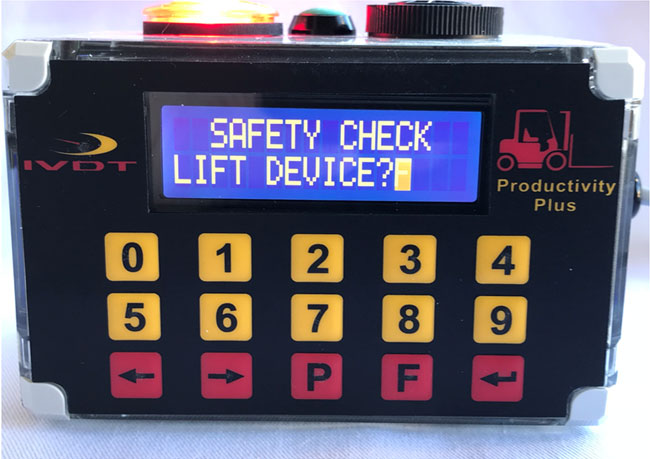

    • Automatic OSHA safety check procedure, every 8, 12 hours or daily(Default value set to every 8 Hours)
    • OSHA safety check procedure start time(Default value set to 7:00 AM))
    • Total time to complete OSHA safety check procedure
    • Vehicle ID#
    • Operator ID#
    • Operator ID#, keypad input (Up to 250 operators, 1 to 3 digits valid code)
    • Factory default operator ID# is 111
    • Operational session start times
    • Real time clock
    • * Operator Access ControlExternal visual warning, extra bright strobe LED miniature flashing indicator will be activated and stay on until a valid operator ID# is entered into the system
    • * Operator Access ControlExternal loud audio warning message will be activated and repeated until a valid operator ID# is entered
    • Internal audio and LCD display visual warning to the operator of all automatic unidentified downtime events
    • Utilization factor (Factory default value with end user adjustment)
    • USB port, excel file format recording
    • RF module with antenna
    • Management password protected (Set clock, vehicle ID#, operators ID#, and changing utilization factor when required)
    • No need to calibrate system in the field
    • 2 Year Warranty
    • Rugged, Reliable, Accurate

    *Note: When ignition switch is turned on the Audio / Visual alert will be activated to remainder operator to log in into the system. Once the operator is logged in the Audio / Visual alert will be turned off. (The iVisibility does not disable vehicle operation)

    Order Number: iVisibility-RF

    iVisibility-RF

    Instant insight into fleet performance

    Installation Manual

    Labor Management Brochure

    SkidWeigh ED2-SLL
    Compact 4” x 2” x 3” Digital Indicator
    Large Easy Read Six Digit LED Display
    No Button Design Easy to Use and Does Not Impede Productivity
    IP67 Harsh Environment Protective Enclosure
    Universal Power Supply from 12 to 60 VDC
    Proprietary and Modular Software for Easy Application Customization
    Automatic Calibration Process
    'Lift-N-Weigh’ Operating Process Works in any Language
    Operable with Forks, Attachments and Hydraulic Accumulators
    Two Independent Weighing Channels
    Reverse Polarity Protection
    Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better
    Swiss Manufactured Specifically for the Material Handling Industry
    2 Year Warranty
    Digital Indicator
    Housing ABS NEMA Type 4X, size 120 x 80 x 55 mm
    Display Six digits LED display
    Operating Voltage 12 to 60 V DC
    Current Consumption <80 mA
    Technology Micro Controller
    Communication Interface RS-232
    Connector Liquid tight straight thru fitting for electrical cable
    Operating Temperature -30°C to + 75°C
    Storage Temperature -40°C to + 80°C
    Weight Function Graduations 1,5 and 10
    Weighing Session Sample Rate 16000 samples
    Weighing Accuracy Within +/- 0.1 to 1% of vehicle lifting capacity
    Weighing Lifting Capacity Up to 50000 pounds or kg
    Output Relay Contact rating 1A, SPDT
    Internal Buzzer 60 dB at 30 cm distance
    Pressure Transducer
    Custom Manufactured Swiss Made
    Pressure Transducer Port 1Ž4”-18 NPT male thread
    Hydraulic Spike Protection Built in pressure snubber
    Proof Pressure 2.5 x range or 6000 PSI
    Environmental NEMA 4X
    Electrical Plug Connection M12 x 1 metal thread
    UL Standard 873
    Shock IEC 60068-2-6
    Power Supply 8 to 33 V DC
    Insulation Voltage 500 V DC
    Response Time <1ms
    Load Cycle <100 Hz
    Current Consumption 4mA
    Reverse Polarity Protection Yes
    Over Voltage Protection Yes
    Short Circuit Protection Yes
    Housing Material Stainless steel (AISI 303)
    Weight 95 g
    Installation Unrestricted
    EMC Conformity EN 61326-2-3-2006 pressure sensor
    Temperature Influence On Accuracy Negligible
    Exceeding Rapture Pressure No media egress
    3 Wires Electrical Cable Gauge 18 AWG STC SR-PVC , 1 meter
    SkidWeigh ED2-SLL
    AT Accumulated Total Provides ED2-SLL users the ability to calculate the total weight of a series of loads
    SM Overload Warning This option notifies the operator when the load lifted is beyond the rated capacity of the lift truck
    SM-A Audio Overload Warning Same operating principal as the SM except with the inclusion of an audible notification upon overload
    2X Two independent Weighing Channels Allows ED2-SLL users to use the system on both forks and quick disconnect attachments without recalibration each time
    SL Display in % of Lifting Capacity ED2-SLL system is configured to display the load lifted weight as a percentage of total lifting capacity
    Print Printer Interface Provided the ED2-SLL user the ability to connect a printer to the system for purposes of printed receipt or labelling
    SkidWeigh ED2-SLL Possible Configurations
    ED2-SLL Standard weighing system
    ED2-AT Standard weighing system with accumulative load weight total
    ED2-AT-SM Standard weighing system with accumulative load weight total and visual overload warning
    ED2-AT-SM-A Standard weighing system with visual overload warning
    ED2-SM Standard weighing system with visual overload warning
    ED2-SM-A Standard weighing system with visual and audio overload warning
    ED2-2X Standard weighing system with two independent weighing channels
    ED2-2X-SM Standard weighing system with two independent weighing channels and visual overload warning for two weighing channels
    ED2-2X-SM-A Standard weighing system with two independent weighing channels and visual/ audio overload warning for two weighing channels
    ED2-2X-AT Standard weighing system with two independent weighing channels and accumulative load weight total for each weighing channel
    ED2-SL Load weighing system showing in % of vehicle lifting capacity
    ED2-SL-SM Load weighing system showing in % of vehicle lifting capacity and visual overload warning
    ED2-SL-SM-A Load weighing system showing in % of vehicle lifting capacity and visual/audio overload warning
    ED2-SL-2X Two independent load weighing system showing in % of vehicle lifting capacity
    ED2-SL-2X-SM Two independent load weighing system showing in % of vehicle lifting capacity with visual overload warning for each channel
    ED2-SL-2X-SM-A Two independent load weighing system showing in % of vehicle lifting capacity with visual / audio overload warning for each channel
    ED2-Print Standard weighing system with accumulative load weight total with interface for RS-232 onboard printer (RS-232 cable and power cable included)
