SkidFleet ED5 Options & Applications
SkidFleet ED5: Total Vehicle Productivity
- Control Access to Vehicle
- Full Osha Safety Check
- Impact Management Recording
- Ability to Weigh Loads Lifted
- Downtime Recognition through Enhanced Utilization Reporting
- Network Connectivity
- No Monthly Support Fees
- Intuitive and Easy to Use
- Self Sustainable
On-board Vehicle Management Systems
| SKIDFLEET ED5 |
|---|

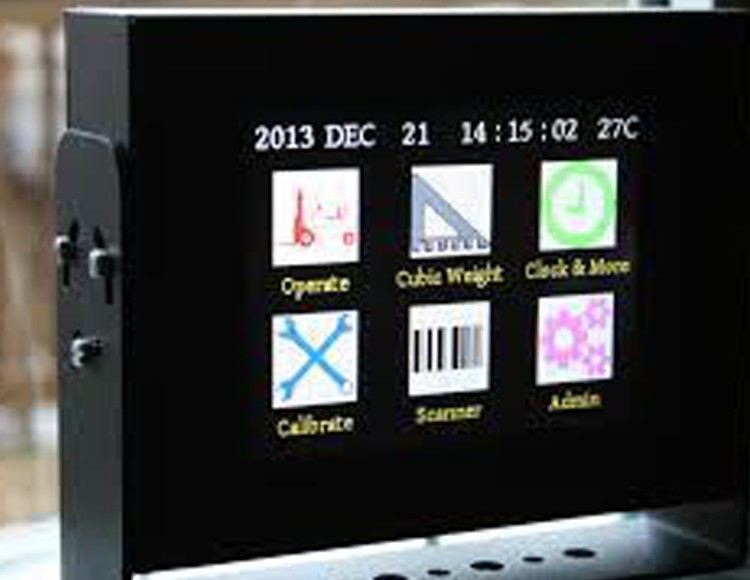

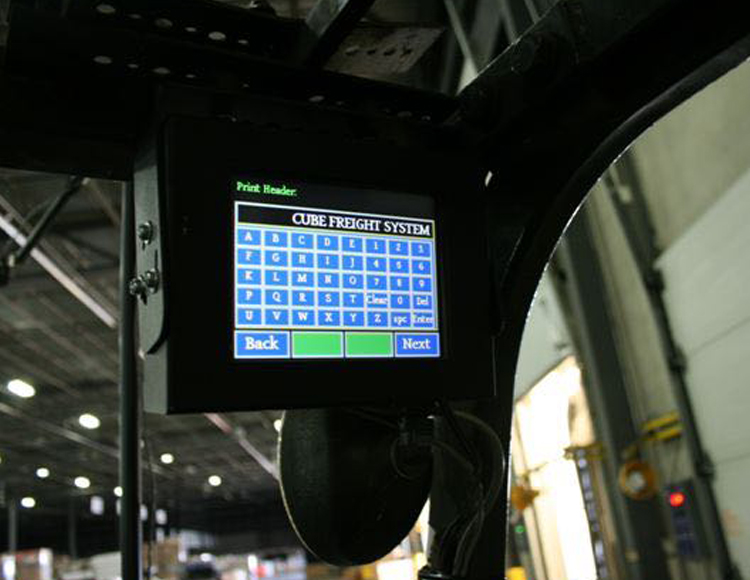

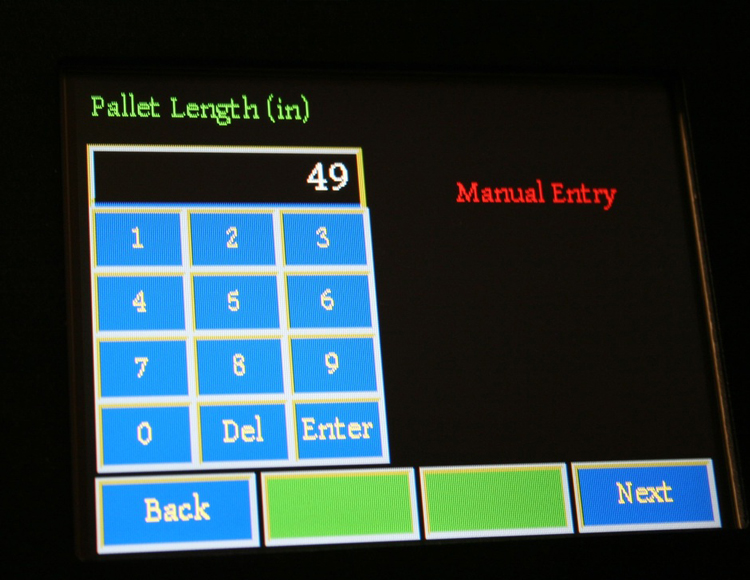

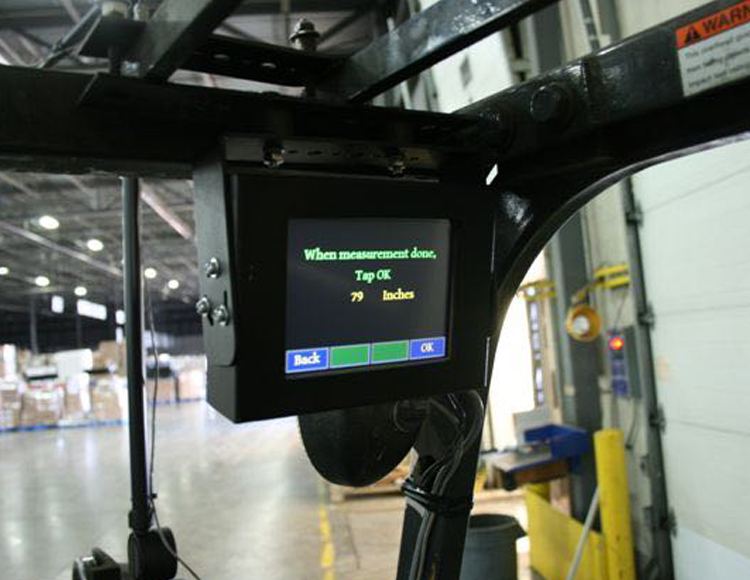

| 5.7” Color TFT Touch Screen Display |
| Optional Built In Barcode scanner |
| Real Time Clock |
| USB port |
| RF module, long distance, clear sight 40 km |
| Harsh Environment Protection |
| Modular Application Software Development |
| Automatic Data “Send” Function |
| Proprietary Weighing Software |
| Automatic Load Weight Calibration |
| Automatic System Calibration |

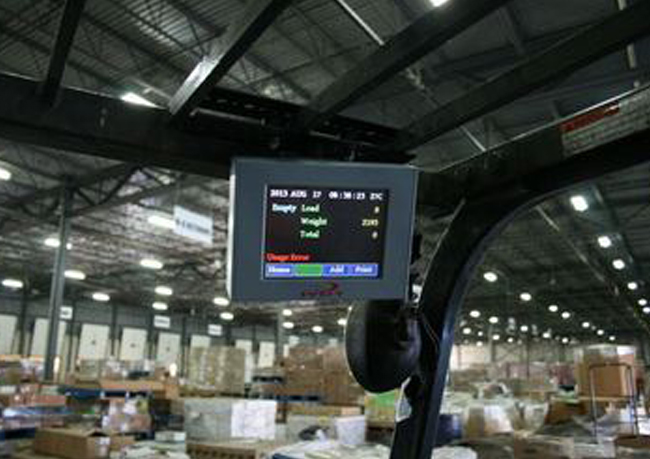

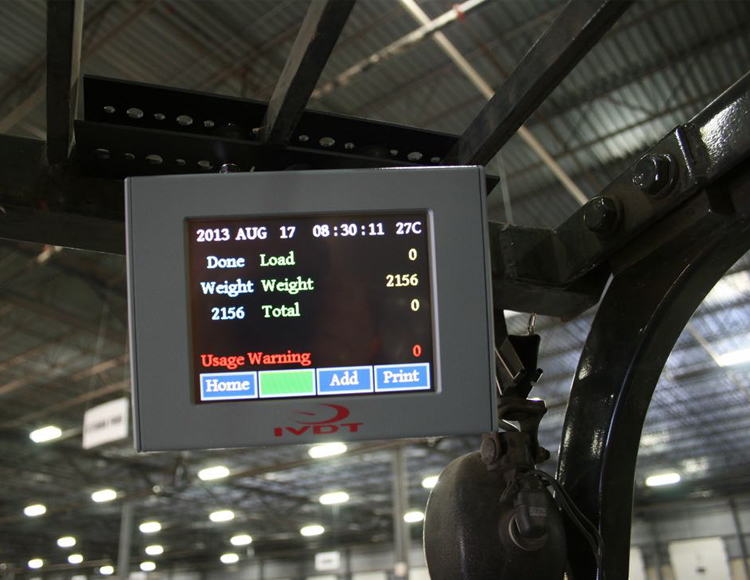

| Lift-N-Weigh Operating Concept |
| Operational With Vehicles Equipped With Hydraulic Accumulator |
| Four Output Relay’s |
| Universal Power Supply From 12 to 60 V DC |
| Reverse Polarity Protection |
| Swiss Made Pressure Transducer |
| Digital Indicator | |
|---|---|
| Housing | Aluminum enclosure, size 180 x 130 x 45 mm |
| Real Time Clock | With battery backup |
| Microprocessor | 16 bit |
| Flash Memory | 64M |
| 10 Bit Analog Channels | 4 |
| Digital Inputs | 4 |
| Digital Output | 1 |
| Display | Color touch screen display with high contrast with LED backlight |
| LCD Display Size | 5.7” |
| LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <65 mA |
| System Set Up | Password protection |
| Communication Interface | Bluetooth V2.01 |
| Communication Interface | USB V2.0 compliant |
| RF module, long distance | 900 MHz |
| Alphanumeric keypad | LCD touch screen |
| Inputs | Four analog inputs |
| Language | English and French |
| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature With Standard LCD Display | -20°C to + 50°C |
| Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
| Storage Temperature | -40°C to + 80°C |
| Weight Function Graduations | 1,5,25,50 and 100 |
| Weighing Session Sample Rate | 16000 samples |
| Weighing Accuracy | Within +/- 0.1 to 1% of vehicle lifting capacity |
| Weighing Lifting Capacity | Up to 99999 pounds or kg |
| Output Relay | 4 relay’s contact rating 1A, SPDT |
| * Relay, Lift Accurate Technology | Contact rating 10 A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |
| Pressure Transducer | |
| Custom Manufactured | Swiss Made |
| Pressure Transducer Port | ¼”-18 NPT male thread |
| Hydraulic Spike Protection | Built in pressure snubber |
| Proof Pressure | 2.5 x range or 6000 PSI |
| Environmental | NEMA 4X |
| Electrical Plug Connection | M12 x 1 metal thread |
| UL Standard | 873 |
| Shock | IEC 60068-2-6 |
| Power Supply | 8 to 33 V DC |
| Insulation Voltage | 500 V DC |
| Response Time | <1ms |
| Load Cycle | <100 Hz |
| Current Consumption | 4mA |
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Housing Material | Stainless steel (AISI 303) |
| Weight | 95 g |
| Installation | Unrestricted |
| EMC Conformity | EN 61326-2-3-2006 pressure sensor |
| Temperature Influence On Accuracy | Negligible |
| Exceeding Rapture Pressure | No media egress |
| 3 Wires Electrical Cable | Gauge 18 AWG STC SR-PVC, 1 meter |
| * For electric pallet truck application | |
| SKIDFLEET ED5 OPTION SUITE |
| ED Series Hydraulic Scale System |
| Defender Impact Management Monitoring |
| Programable Operator Access Control |
| Vehicle Utilization |
| Productivity Impediment Determinant (Downtime Recovery) |
| Engine Idling |
| Contact Manufacturer or additional or customized options. |
| SKIDFLEET ED5 CONNECTIVITY | ||
|---|---|---|
| BS-RF | Base Station | USB Recording with excel CVS. formatting |
| BE-RF | Ethernet | Ethernet connectivity to PC with excel CVS. formatting |
| BW-RF | Wi-Fi | Wi-Fi connectivity to PC with excel CVS. Formatting |
| Note: Additional information formats are available please see IVDT Management Reporting or contact a representative | ||
