SkidWeigh Plus ED6 CubeFreight GSS Series
SkidWeigh Plus ED6 CubeFreight GSS Series
- Freight Dimensioning
- Control Access to Vehicle
- Printing tickets
- Full Osha Safety Check
- Impact Management Recording
- Ability to Weigh Loads Lifted
- Downtime Recognition Through Enhanced Utilization Reporting
- Network Connectivity
- No Monthly Support Fees
- Intuitive and Easy to Use
- Self Sustainable
| EED6 CUBEFREIGHT GSS SERIES |
|---|

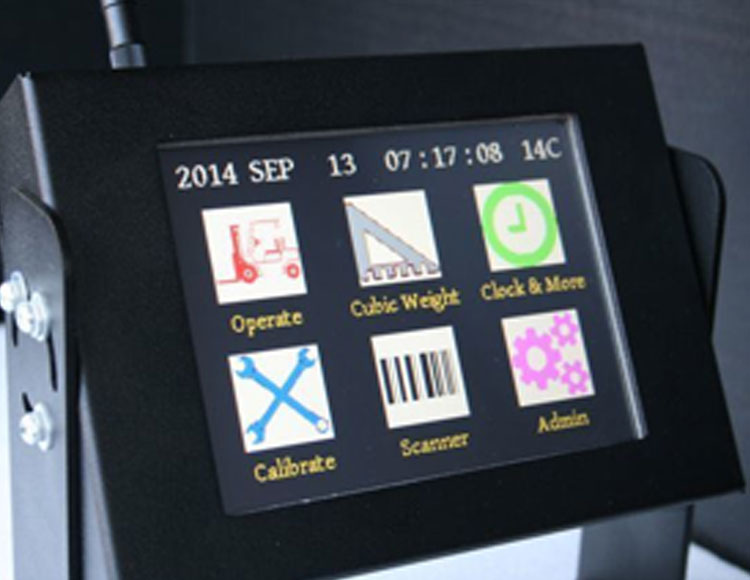

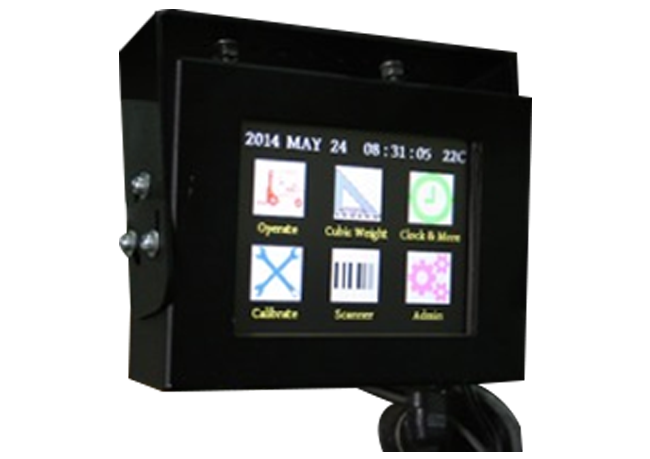

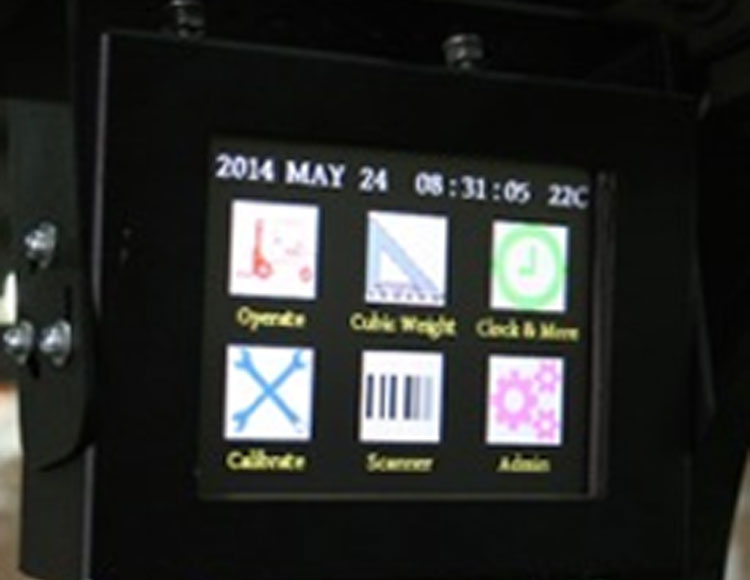

| Color touchscreen display |
| Weighing Accuracy from +/- 01 to 1.0% of vehicle maximum lifting capacity |
| Dim Factor Table |

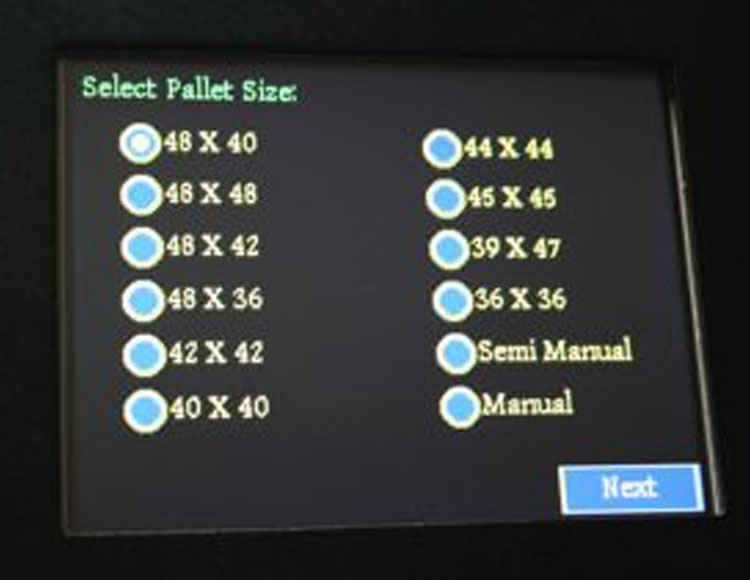

| Pallet Size Table |
| Universal Power Supply from 12 to 60 VDC |
| Proprietary LTL and Modular Software for Easy Application Customization |
| Real Time Clock and Data Stamp Validation |
| Automatic Calibration Process |
| 'Lift-N-Weigh’ Operating Process |
| Operable with Forks, Attachments and Hydraulic Accumulators |
| Fully Automatic Measurement Cycle |
| Reverse Polarity Protection |
| Internal audio feedback for screen inputs |
| Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry |
| 2 Year Warranty |
| ED6 CUBEFREIGHT DIGITAL INDICATOR | |
|---|---|
| Housing | Aluminum enclosure, size 180 x 130 x 45 mm Optional: ABS Enclosure, 170 x 158 x 40 mm |
| Real Time Clock | With battery backup |
| Microprocessor | 16 bit |
| Flash Memory | 64Mbit |
| 10 Bit Analog Channels | 4 |
| Digital Inputs | 4 |
| Digital Output | 1 |
| Display | Color touch screen display with high contrast with LED backlight |
| LCD Display Size | 5.7” |
| LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <95 mA |
| System Set Up | Password protection |
| Communication Interface | Bluetooth V2.01 |
| Communication Interface | USB V2.0 compliant |
| RF module, long distance | 900 MHz |
| Alphanumeric keypad | LCD touch screen |
| Inputs | Four analog inputs |
| Language | English |
| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature With Standard LCD Display | -20°C to + 50°C |
| Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
| Storage Temperature | -40°C to + 80°C |
| Weight Function Graduations | 1,5,25,50 and 100 |
| Weighing Session Sample Rate | 16000 samples |
| Weighing Accuracy | Within +/- 0.1 to 1.0% of vehicle lifting capacity |
| Weighing Lifting Capacity | Up to 99999 pounds or kg |
| Output Relay | 2 relay’s contact rating 10A, SPDT |
| Relay, Lift Accurate Technology Application* | Contact rating 10 A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |
| PRESSURE TRANSDUCER | |
|---|---|
| Custom Manufactured | Swiss Made |
| Pressure Transducer Port | ¼”-18 NPT male thread |
| Hydraulic Spike Protection | Built in pressure snubber |
| Proof Pressure | 2.5 x range or 6000 PSI |
| Environmental | NEMA 4X |
| Electrical Plug Connection | M12 x 1 metal thread |
| UL Standard | 873 |
| Shock | IEC 60068-2-6 |
| Power Supply | 8 to 33 V DC |
| Insulation Voltage | 500 V DC |
| Response Time | <1ms |
| Load Cycle | <100 Hz |
| Current Consumption | 4mA |
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Housing Material | Stainless steel (AISI 303) |
| Weight | 95 g |
| Installation | Unrestricted |
| EMC Conformity | EN 61326-2-3-2006 pressure sensor |
| Temperature Influence On Accuracy | Negligible |
| Exceeding Rapture Pressure | No media egress |
| 3 Wires Electrical Cable | Gauge 18 AWG STC SR-PVC, 1 meter |
| * For electric pallet truck application | |
| ED6 CUBEFREIGHT OPTION |
|---|
| Recycling Software Application with Email Alerts & Notifications |
| Defender Impact Management Monitoring |
| Programable Operator Access Control |
| Vehicle Utilization |
| Productivity Impediment Determinant (Downtime Recovery) |
| Engine Idling |
| Contact Manufacturer or Additional or Customized Options. |
