    UT30 Series

    The Importance Of Vehicle Idling Problem Solving



    The study shows that of the five year cost of typical lift truck ownership, average equipment cost is in the range of 80% which devolves on the operator labor cost.

    Fleet Optimization

    It is time to apply measurement in place to manage and control the 80% of largest component cost by assigning vehicle utilization awareness, optimum uptime, accountability to individual operators and focus on setting performance targets to give everyone in your operation a clear sense of what they should be aiming for.

    Instead of a large initial investment in telematics solution providing numerous reports and spreadsheets that fleet managers had to sift through historical data is not effective when it comes to improving fleet utilization, pay attention to monitoring of the IDLING times on every vehicle in your fleet.

    The immediate access to the vehicle usage status in real time for each vehicle and having the same data visible to the operator is the most important management tool to maximize asset utilization and operator efficiency.

    The idea is not to wait and analyze data after one shift, or one day, or one week or month, but to have instant visibility throughout the measurement process that will let you examine changes in performance and put you in a better position to manage fleet performance proactively.

    UT30 Series
    Compact Size Digital indicator, 4” x 2” x 3.5”
    Easy to Read LCD Display, Low Temperature Version
    Real Time Clock
    Harsh Environment Protective Enclosure
    Keypad 16 key With Tactile Feedback, Sealed, Watertight With Functions Overlay
    Overload alerts
    Visual Display For High Impacts
    Visual Display For Low Impacts
    Impacts Values Set Up By End User Via Keypad
    Impact Range 1.0 to 16.0 G's
    Automatic Idling Indication / Recordings
    Downtime Input Indication / Recordings
    Audible Alarm Available
    Visual Alarm Available
    OSHA Safety Checklist
    USB Port
    RF wireless Module
    Bluetooth Module
    Calibration of Weighing Function, Self Programmable
    Universal Power Supply from 12 to 60 VDC
    Proprietary and Modular Software for Easy Application Customization
    2 Year Warranty
    * Functions available as per options on UT10 to UT60
    UT30 Series

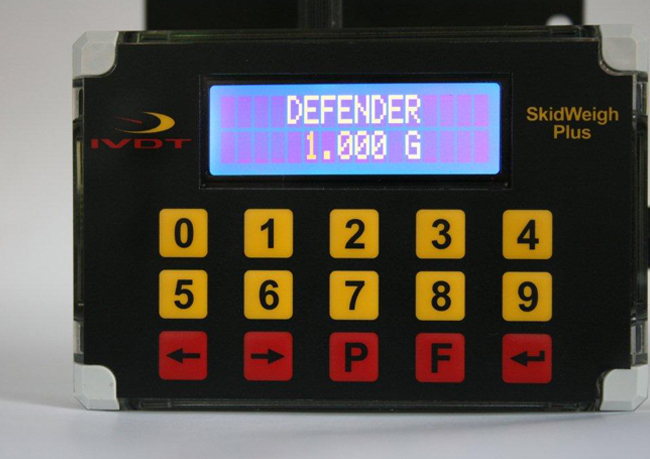

    UT SkidWeigh Plus series Series, Digital Indicator, 4” x 2” x 3”
    LCD Display 2 Lines x 16 Characters
    High Contrast LCD Supertwist Display
    Operating Temperature 0 to 50C ( DHNLED low temperature range, -20C to +70 C)
    IP67 Environment Protective Enclosure
    Universal Power Supply from 12 to 60 VDC
    Switching Power Supply
    Reverse Polarity Protection
    6 Mbit Flash Memory
    Proprietary and Modular Software for Easy Application Customization
    Real Time Clock and Data Stamp Validation
    Standard USB Data Port
    Clear Site RF Data Transmission 40 km
    Indoor Site RF Data Transmission Typical Range 1 km
    Automatic Calibration Process
    'Lift-N-Weigh’ Operating Process
    Operable with Forks, Attachments and Hydraulic Accumulators
    Two Independent Weighing Channels
    Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better
    Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry
    PRESSURE TRANSDUCER
    Custom Manufactured Swiss Made
    Pressure Transducer Port ¼”-18 NPT Male Thread
    Hydraulic Spike Protection Built in Pressure Snubber
    Proof Pressure 2.5 x range or 6000 PSI
    Environmental NEMA 4X
    Electrical Plug ConnectionM12 x 1 Metal Thread
    UL Standard 873
    Shock IEC 60068-2-6
    Power Supply 8 to 33 VDC
    Insulation Voltage 500 VDC
    Response Time <1ms
    Load Cycle <100 Hz
    Current Consumption 4mA
    Reverse Polarity Protection
    Over Voltage Protection
    Short Circuit Protection
    Housing MaterialStainless steel (AISI 303)
    Weight 95 g
    Installation Unrestricted
    EMC ConformityEN 61326-2-3-2006 Pressure Sensor
    Temperature Influence On Accuracy Negligible
    Exceeding Rapture PressureNo Media Egress
    3 Wires Electrical Cable Gauge 18 AWG STC SR-PVC, 1 meter
    UT30 Series
