Welcome to the Corporate IVDT Online Shop

UT40 Series

The Importance Of Vehicle Idling Problem Solving


The study shows that of the five year cost of typical lift truck ownership, average equipment cost is in the range of 80% which devolves on the operator labor cost.

Fleet Optimization

It is time to apply measurement in place to manage and control the 80% of largest component cost by assigning vehicle utilization awareness, optimum uptime, accountability to individual operators and focus on setting performance targets to give everyone in your operation a clear sense of what they should be aiming for.

Instead of a large initial investment in telematics solution providing numerous reports and spreadsheets that fleet managers had to sift through historical data is not effective when it comes to improving fleet utilization, pay attention to monitoring of the IDLING times on every vehicle in your fleet.

The immediate access to the vehicle usage status in real time for each vehicle and having the same data visible to the operator is the most important management tool to maximize asset utilization and operator efficiency.

The idea is not to wait and analyze data after one shift, or one day, or one week or month, but to have instant visibility throughout the measurement process that will let you examine changes in performance and put you in a better position to manage fleet performance proactively.

UT40 Series
Compact Size Digital indicator, 4” x 2” x 3.5”
Easy to Read LCD Display, Low Temperature Version
Real Time Clock
Harsh Environment Protective Enclosure
Keypad 16 key With Tactile Feedback, Sealed, Watertight With Functions Overlay
Overload alerts
Visual Display For High Impacts
Visual Display For Low Impacts
Impacts Values Set Up By End User Via Keypad
Impact Range 1.0 to 16.0 G's
Automatic Idling Indication / Recordings
Downtime Input Indication / Recordings
Audible Alarm Available
Visual Alarm Available
OSHA Safety Checklist
USB Port
RF wireless Module
Bluetooth Module
Calibration of Weighing Function, Self Programmable
Universal Power Supply from 12 to 60 VDC
Proprietary and Modular Software for Easy Application Customization
2 Year Warranty
* Functions available as per options on UT10 to UT60
UT40 Series

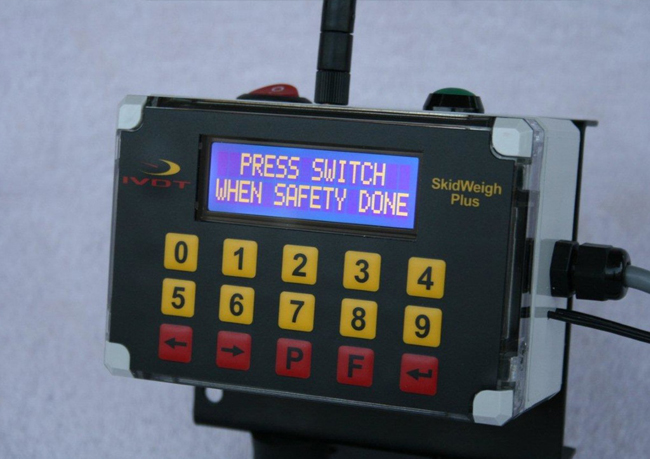

UT SkidWeigh Plus series Series, Digital Indicator, 4” x 2” x 3”
LCD Display 2 Lines x 16 Characters
High Contrast LCD Supertwist Display
Operating Temperature 0 to 50C ( DHNLED low temperature range, -20C to +70 C)
IP67 Environment Protective Enclosure
Universal Power Supply from 12 to 60 VDC
Switching Power Supply
Reverse Polarity Protection
6 Mbit Flash Memory
Proprietary and Modular Software for Easy Application Customization
Real Time Clock and Data Stamp Validation
Standard USB Data Port
Clear Site RF Data Transmission 40 km
Indoor Site RF Data Transmission Typical Range 1 km
Automatic Calibration Process
'Lift-N-Weigh’ Operating Process
Operable with Forks, Attachments and Hydraulic Accumulators
Two Independent Weighing Channels
Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better
Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry
PRESSURE TRANSDUCER
Custom Manufactured Swiss Made
Pressure Transducer Port ¼”-18 NPT Male Thread
Hydraulic Spike Protection Built in Pressure Snubber
Proof Pressure 2.5 x range or 6000 PSI
Environmental NEMA 4X
Electrical Plug ConnectionM12 x 1 Metal Thread
UL Standard 873
Shock IEC 60068-2-6
Power Supply 8 to 33 VDC
Insulation Voltage 500 VDC
Response Time <1ms
Load Cycle <100 Hz
Current Consumption 4mA
Reverse Polarity Protection
Over Voltage Protection
Short Circuit Protection
Housing MaterialStainless steel (AISI 303)
Weight 95 g
Installation Unrestricted
EMC ConformityEN 61326-2-3-2006 Pressure Sensor
Temperature Influence On Accuracy Negligible
Exceeding Rapture PressureNo Media Egress
3 Wires Electrical Cable Gauge 18 AWG STC SR-PVC, 1 meter
UT40 Series
