MyKPI-RF Options & Applications
MyKPI-RF Overall Equipment Effectiveness Measurement
- Automatic recording of true operational unidentified downtime within utilization factor (No operator input required)
- Vehicle ID#
- Operator ID#
- Operator ID#, keypad input (Up to 250 operators, 1 to 3 digits valid code)
- Factory default operator ID# is 111
- Operational session start times
- Real time clock
- * Operator Access Control:External visual warning, extra bright strobe LED miniature flashing indicator will be activated and stay on until a valid operator ID# is entered into the system
- * Operator Access control:External audio warning message will be activated and repeated until a valid operator ID# is entered
- Internal audio and LCD display visual warning to the operator of all unidentified downtime events
- Utilization factor (Factory default value with end user adjustment)
- USB port, excel file format recording
- RF module with antenna(myKPI-RF systems sold with the Base Station communication hub provide users with a LAN web page reports. The Base Station then connects to your network)
- Management password protected (Set clock, vehicle ID#, operators ID# and changing utilization factor when required)
- No need to calibrate system in the field
- 2 Year Warranty
- Rugged, Reliable, Accurate
Order Number:myKPI-RF
myKPI-RF
Labor Management Brochure
Instant insight into fleet performance

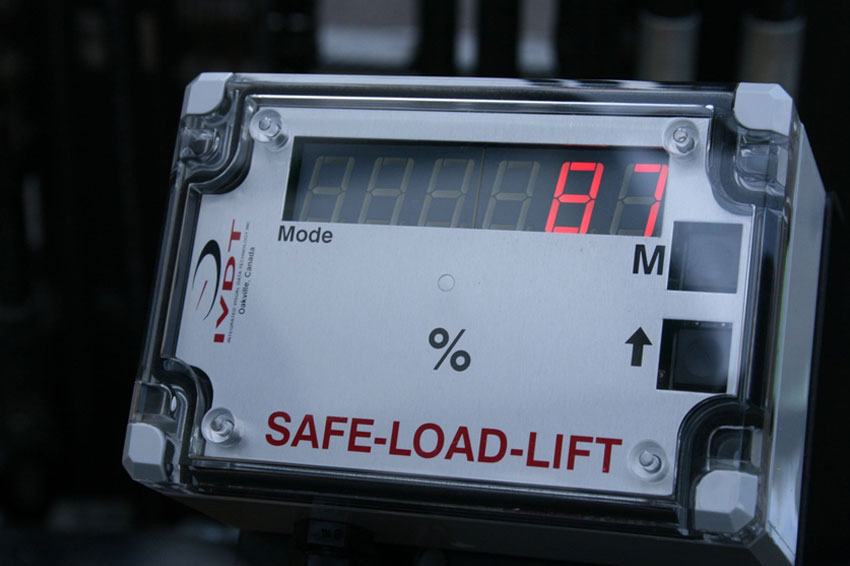

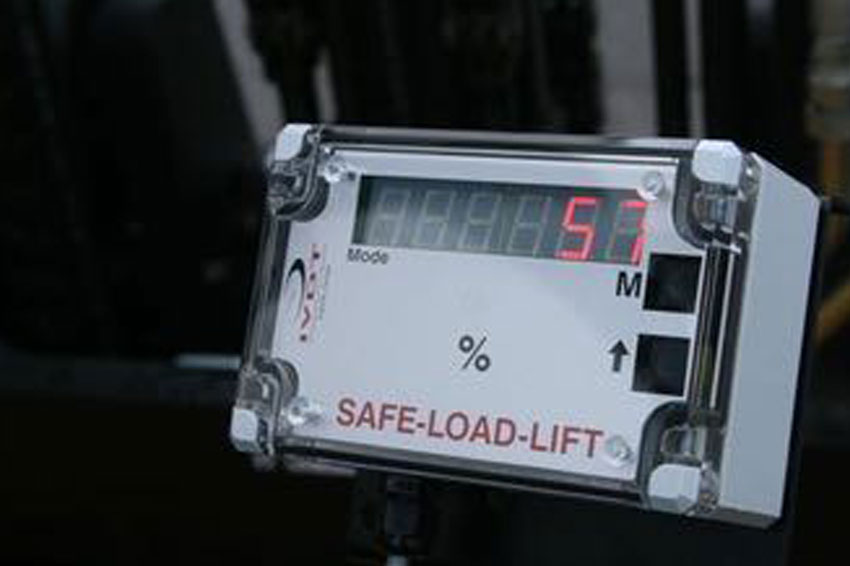

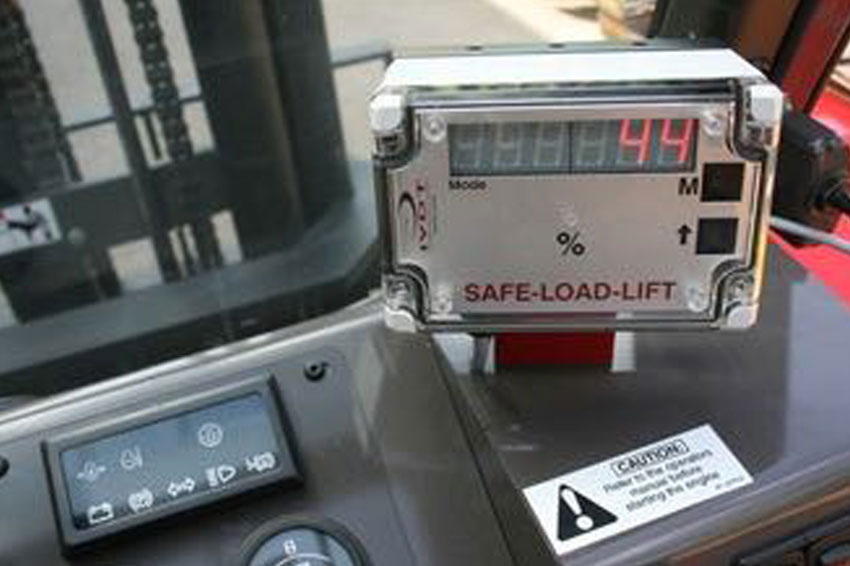

| SkidWeigh ED2-SLL |
|---|
| Compact 4” x 2” x 3” Digital Indicator |
| Large Easy Read Six Digit LED Display |
| No Button Design Easy to Use and Does Not Impede Productivity |
| IP67 Harsh Environment Protective Enclosure |
| Universal Power Supply from 12 to 60 VDC |
| Proprietary and Modular Software for Easy Application Customization |
| Automatic Calibration Process |
| 'Lift-N-Weigh’ Operating Process Works in any Language |
| Operable with Forks, Attachments and Hydraulic Accumulators |
| Two Independent Weighing Channels |
| Reverse Polarity Protection |
| Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better |
| Swiss Manufactured Specifically for the Material Handling Industry |
| 2 Year Warranty |
| Digital Indicator | |
|---|---|
| Housing | ABS NEMA Type 4X, size 120 x 80 x 55 mm |
| Display | Six digits LED display |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <80 mA |
| Technology | Micro Controller |
| Communication Interface | RS-232 |
| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature | -30°C to + 75°C |
| Storage Temperature | -40°C to + 80°C |
| Weight Function Graduations | 1,5 and 10 |
| Weighing Session Sample Rate | 16000 samples |
| Weighing Accuracy | Within +/- 0.1 to 1% of vehicle lifting capacity |
| Weighing Lifting Capacity | Up to 50000 pounds or kg |
| Output Relay | Contact rating 1A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |

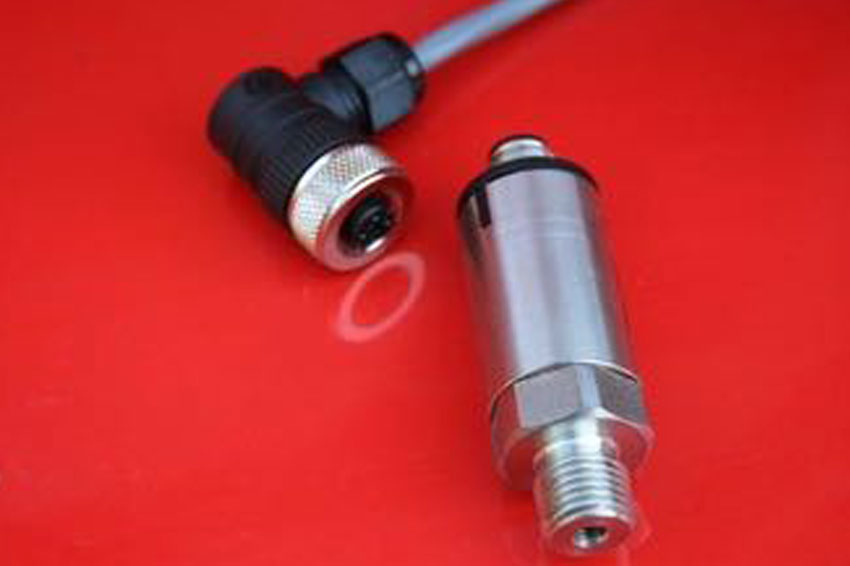

| Pressure Transducer | |
| Custom Manufactured | Swiss Made |
| Pressure Transducer Port | 1Ž4”-18 NPT male thread |
| Hydraulic Spike Protection | Built in pressure snubber |
| Proof Pressure | 2.5 x range or 6000 PSI |
| Environmental | NEMA 4X |
| Electrical Plug Connection | M12 x 1 metal thread |
| UL Standard | 873 |
| Shock | IEC 60068-2-6 |
| Power Supply | 8 to 33 V DC |
| Insulation Voltage | 500 V DC |
| Response Time | <1ms |
| Load Cycle | <100 Hz |
| Current Consumption | 4mA |
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Housing Material | Stainless steel (AISI 303) |
| Weight | 95 g |
| Installation | Unrestricted |
| EMC Conformity | EN 61326-2-3-2006 pressure sensor |
| Temperature Influence On Accuracy | Negligible |
| Exceeding Rapture Pressure | No media egress |
| 3 Wires Electrical Cable | Gauge 18 AWG STC SR-PVC , 1 meter |
| SkidWeigh ED2-SLL | ||
|---|---|---|
| AT | Accumulated Total | Provides ED2-SLL users the ability to calculate the total weight of a series of loads |
| SM | Overload Warning | This option notifies the operator when the load lifted is beyond the rated capacity of the lift truck |
| SM-A | Audio Overload Warning | Same operating principal as the SM except with the inclusion of an audible notification upon overload |
| 2X | Two independent Weighing Channels | Allows ED2-SLL users to use the system on both forks and quick disconnect attachments without recalibration each time |

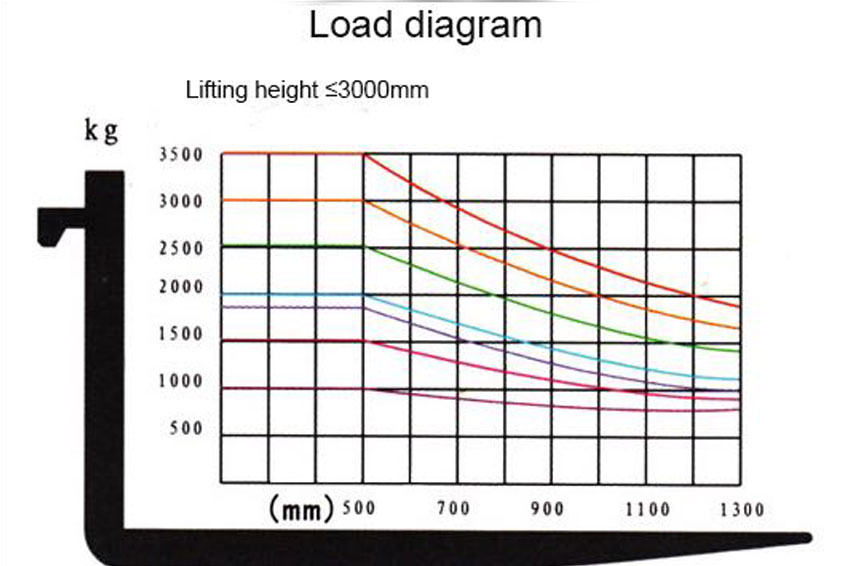

| SL | Display in % of Lifting Capacity | ED2-SLL system is configured to display the load lifted weight as a percentage of total lifting capacity |
| Printer Interface | Provided the ED2-SLL user the ability to connect a printer to the system for purposes of printed receipt or labelling | |
| SkidWeigh ED2-SLL Possible Configurations | |
|---|---|
| ED2-SLL | Standard weighing system |
| ED2-AT | Standard weighing system with accumulative load weight total |
| ED2-AT-SM | Standard weighing system with accumulative load weight total and visual overload warning |
| ED2-AT-SM-A | Standard weighing system with visual overload warning |
| ED2-SM | Standard weighing system with visual overload warning |
| ED2-SM-A | Standard weighing system with visual and audio overload warning |
| ED2-2X | Standard weighing system with two independent weighing channels |
| ED2-2X-SM | Standard weighing system with two independent weighing channels and visual overload warning for two weighing channels |
| ED2-2X-SM-A | Standard weighing system with two independent weighing channels and visual/ audio overload warning for two weighing channels |
| ED2-2X-AT | Standard weighing system with two independent weighing channels and accumulative load weight total for each weighing channel |
| ED2-SL | Load weighing system showing in % of vehicle lifting capacity |
| ED2-SL-SM | Load weighing system showing in % of vehicle lifting capacity and visual overload warning |
| ED2-SL-SM-A | Load weighing system showing in % of vehicle lifting capacity and visual/audio overload warning |
| ED2-SL-2X | Two independent load weighing system showing in % of vehicle lifting capacity |
| ED2-SL-2X-SM | Two independent load weighing system showing in % of vehicle lifting capacity with visual overload warning for each channel |
| ED2-SL-2X-SM-A | Two independent load weighing system showing in % of vehicle lifting capacity with visual / audio overload warning for each channel |
| ED2-Print | Standard weighing system with accumulative load weight total with interface for RS-232 onboard printer (RS-232 cable and power cable included) |
