UT20 Series
The Importance Of Vehicle Idling Problem Solving
The study shows that of the five year cost of typical lift truck ownership, average equipment cost is in the range of 80% which devolves on the operator labor cost.
Fleet Optimization
It is time to apply measurement in place to manage and control the 80% of largest component cost by assigning vehicle utilization awareness, optimum uptime, accountability to individual operators and focus on setting performance targets to give everyone in your operation a clear sense of what they should be aiming for.
Instead of a large initial investment in telematics solution providing numerous reports and spreadsheets that fleet managers had to sift through historical data is not effective when it comes to improving fleet utilization, pay attention to monitoring of the IDLING times on every vehicle in your fleet.
The immediate access to the vehicle usage status in real time for each vehicle and having the same data visible to the operator is the most important management tool to maximize asset utilization and operator efficiency.
The idea is not to wait and analyze data after one shift, or one day, or one week or month, but to have instant visibility throughout the measurement process that will let you examine changes in performance and put you in a better position to manage fleet performance proactively.
UT20 Series |
---|
Compact Size Digital indicator, 4” x 2” x 3.5” |
Easy to Read LCD Display, Low Temperature Version |
Real Time Clock |
Harsh Environment Protective Enclosure |
Keypad 16 key With Tactile Feedback, Sealed, Watertight With Functions Overlay |
Overload alerts |
Visual Display For High Impacts |
Visual Display For Low Impacts |
Impacts Values Set Up By End User Via Keypad |
Impact Range 1.0 to 16.0 G's |
Automatic Idling Indication / Recordings |
Downtime Input Indication / Recordings |
Audible Alarm Available |
Visual Alarm Available |
OSHA Safety Checklist |
USB Port |
RF wireless Module |
Bluetooth Module |
Calibration of Weighing Function, Self Programmable |
Universal Power Supply from 12 to 60 VDC |
Proprietary and Modular Software for Easy Application Customization |
2 Year Warranty |
* Functions available as per options on UT10 to UT60 |
UT20 Series |
---|

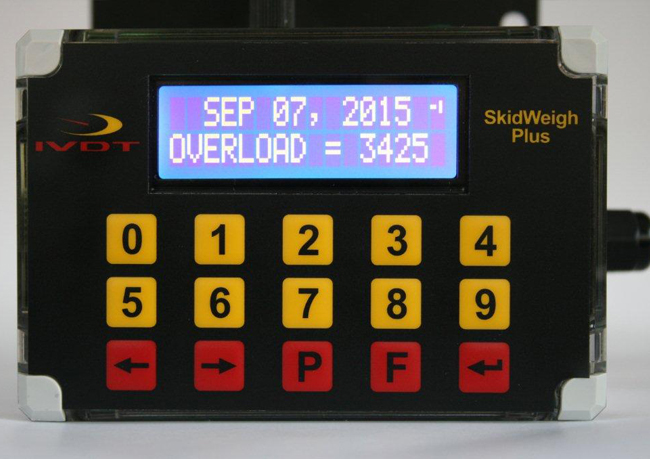

UT SkidWeigh Plus series Series, Digital Indicator, 4” x 2” x 3” |
LCD Display 2 Lines x 16 Characters |
High Contrast LCD Supertwist Display |
Operating Temperature 0 to 50C ( DHNLED low temperature range, -20C to +70 C) |
IP67 Environment Protective Enclosure |
Universal Power Supply from 12 to 60 VDC |
Switching Power Supply |
Reverse Polarity Protection |
6 Mbit Flash Memory |
Proprietary and Modular Software for Easy Application Customization |
Real Time Clock and Data Stamp Validation |
Standard USB Data Port |
Clear Site RF Data Transmission 40 km |
Indoor Site RF Data Transmission Typical Range 1 km |
Automatic Calibration Process |
'Lift-N-Weigh’ Operating Process |
Operable with Forks, Attachments and Hydraulic Accumulators |
Two Independent Weighing Channels |
Industry Leading Accuracy and Reliability with +/-1% of Rated Capacity or Better |
Swiss Manufactured Pressure Transducers Specifically for the Material Handling Industry |
PRESSURE TRANSDUCER |
Custom Manufactured Swiss Made |
Pressure Transducer Port ¼”-18 NPT Male Thread |
Hydraulic Spike Protection Built in Pressure Snubber |
Proof Pressure 2.5 x range or 6000 PSI |
Environmental NEMA 4X |
Electrical Plug ConnectionM12 x 1 Metal Thread |
UL Standard 873 |
Shock IEC 60068-2-6 |
Power Supply 8 to 33 VDC |
Insulation Voltage 500 VDC |
Response Time <1ms |
Load Cycle <100 Hz |
Current Consumption 4mA |
Reverse Polarity Protection |
Over Voltage Protection |
Short Circuit Protection |
Housing MaterialStainless steel (AISI 303) |
Weight 95 g |
Installation Unrestricted |
EMC ConformityEN 61326-2-3-2006 Pressure Sensor |
Temperature Influence On Accuracy Negligible |
Exceeding Rapture PressureNo Media Egress |
3 Wires Electrical Cable Gauge 18 AWG STC SR-PVC, 1 meter |
UT20 Series |
---|
